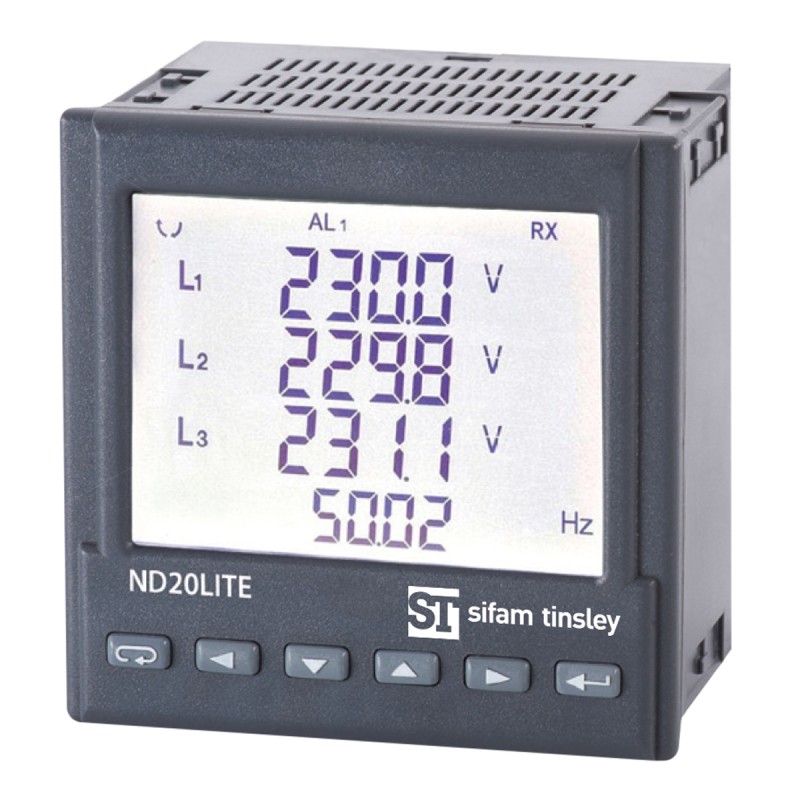

1 pcs - Sifam Tinsley LCD Energy Meter, Type Electrical

Data sheet

Manufacturer

SIFAM TINSLEY

Depth

7.7mm

A-Supplier

Allparts-UK-R

Series

ND20LITE

Maximum Temperature

+55°C

Display Type

LCD

Number of Digits

16

Measurement Range

0.002 - 1.2 (Current A @ 1 A), 0.010 - 6 (Current A @ 5 A), 1.4 VA - 1.65 kVA (Apparent Power), -1.65 - 1.65 (Active Power) kW, -1.65 - 1.65 (Reactive Power) kVA, 11.5 - 276 (Voltage L-N V @ 230 V), 2.8 - 70 (Voltage L-N V @ 57.7 V), 20 - 480 (Voltage L-L

Minimum Temperature

-25°C

Cutout Height

92.5mm

Cutout Width

92.5mm

Meter Type

Electrical

Approvals

CE, EN 61000-6-2, EN 61000-6-4, EN 61010-1

Minimum Measurement

0.002 (Current A @ 1 A), 0.010 (Current A @ 5 A), 1.4 (Apparent Power) VA, -1.65 (Active Power) kW, -1.65 (Reactive Power) kVA, 11.5 (Voltage L-N V @ 230 V), 2.8 (Voltage L-N V @ 57.7 V), 20 (Voltage L-L V @ 400 V), 47 (Frequency) Hz, 5 (Voltage L-L V @ 1

Maximum Measurement

1.2 (Current A @ 1 A), 1.65 (Active Power) kW, 1.65 (Apparent Power) kVA, 1.65 (Reactive Power) kVA, 120 (Voltage L-L V @ 100 V), 276 (Voltage L-N V @ 230 V), 480 (Voltage L-L V @ 400 V), 6 (Current A @ 5 A), 63 (Frequency) Hz, 70 (Voltage L-N V @ 57.7 V)
