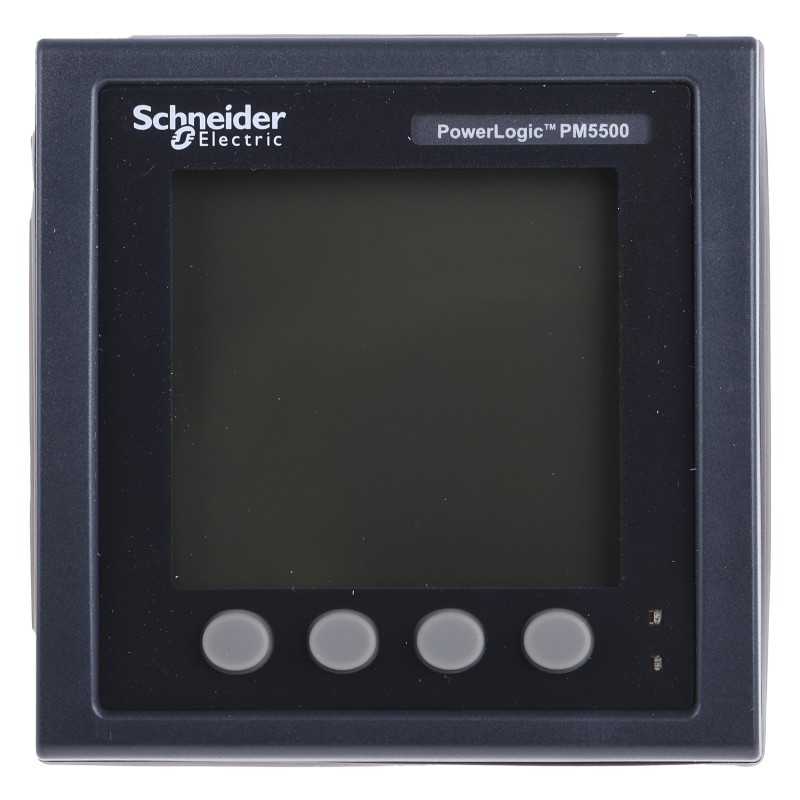

1 pcs - Schneider Electric 3 Phase LCD Digital Power Meter, Type Electromechanical

Data sheet

Manufacturer

SCHNEIDER ELECTRIC

Number of inputs

4

Number of outputs

2

Depth

72mm

A-Supplier

Allparts-UK-R

Series

PM5000

Better World Product

Yes

Better World Verification

Green Premium

Maximum Temperature

+70°C

Display Type

LCD

Measurement Range

20 - 400 (Phase and Neutral) V ac, 35 - 690 (Phase) V ac, 45 - 65 Hz, 5 mA - 10A

Minimum Temperature

-25°C

Meter Type

Electromechanical

Approvals

CE Conforming to IEC 61010-1c, CULus Conforming to UL 61010-1, EN 50470-1, EN 50470-3, IEC 60529, IEC 61557-12, IEC 62053-22, IEC 62053-24

Minimum Measurement

20 (Phase and Neutral) V ac, 35 (Phase) V ac, 5 mA, 45 Hz

Communication Port Type

Modbus

Number of Phases

3

Meter Accuracy

±0.05 (Frequency) %, ±0.05 (Power Factor) %, ±0.1 (Voltage) %, ±0.15 (Current) °C, ±0.2 (Active Energy) %, ±0.2 (Active Power) %, ±0.5 (Apparent Power) %, ±1 (Reactive Energy) %

Maximum Measurement

400 (Phase and Neutral) V ac, 690 (Phase) V ac, 10 A, 65 Hz
