Jantzen Audio core coil 0.5mH / dr.0.5mm Jantzen Audio

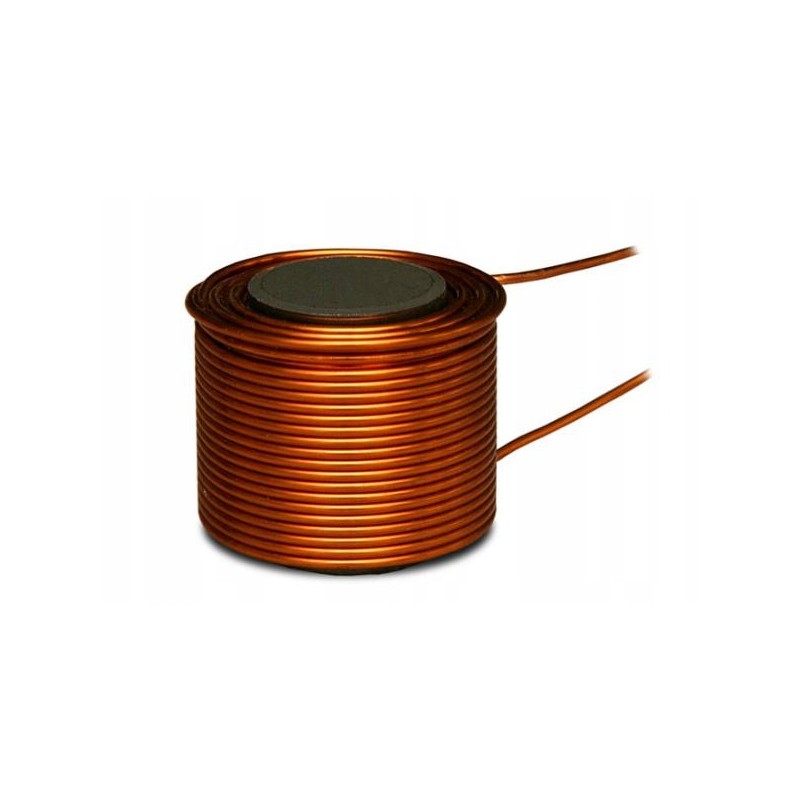

Jantzen Audio cylindrical core coil Coils from Jantzen Audio - for those who prefer discless core inductors. Cylindrical coils offer high inductances, low resistance and an inexpensive solution for people looking for crossover coils for the woofer and midrange sections. Built on a Permite (not ferrite) core, it provides significantly lower magnetic hysteresis compared to ferrite core coils while providing greater transfer power. The coils are wound with 4N purity copper wire The extremely low DCR offered by these voice coils does not alter the speaker's damping factor or performance loss.

When comparing both types of core coils, most customers choose discless coils, especially if there is little space in the crossover. In terms of sound, there is not much difference between these two types of coils.

Technical information:

class 1B copper wire, insulated with a layer of varnish and coated with a bonding layer - thermo-sintered

tolerance +/-3%

insulating layer: polyurethane with aliphatic polyamide coating

possibility of soldering at temperatures up to 390 °C (8s) without damaging the coating

elasticity: 10% 1 d

breakdown voltage: in accordance with IEC 60317-0-1 (7.8 kV)

width: 0.00

height: 0.00

depth: 0.00

Inductance (mH): 0.5 mH

Coil resistance (Ω): 0.49 ohm

Coil type: cylindrical core
