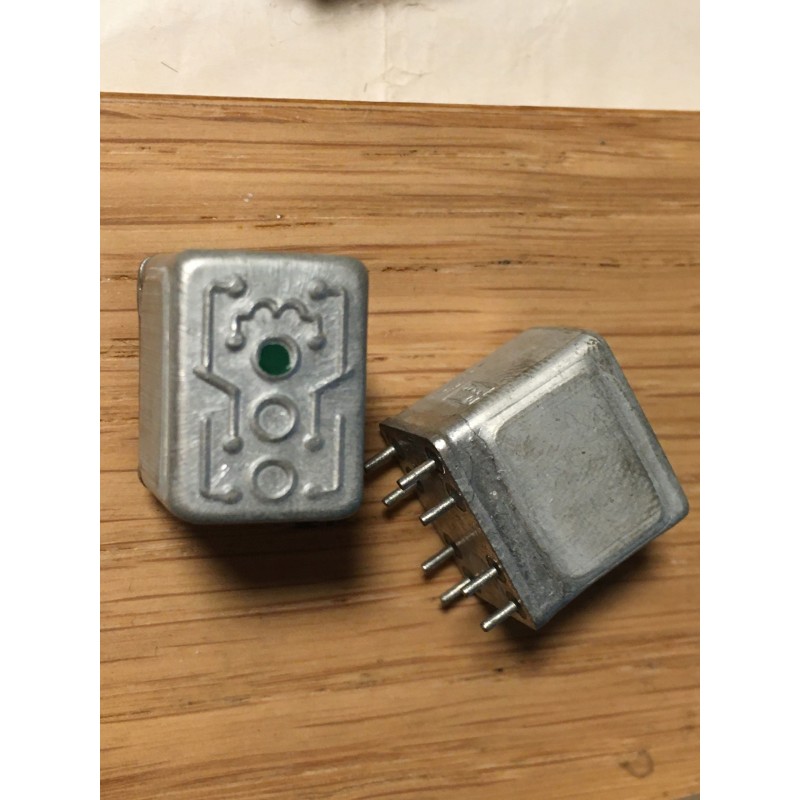

27v 1 kohm hermetic relay

Relay 27V, 1 kOhm. Hermetic relay. The contacts are switched on when the voltage exceeds 16 V. No coil power supply, contacts are closed, as shown in the connection drawing. When the power supply is connected, the middle contacts are closed with the disconnected contact. Unused part, price for 1 pc.

Data:

Vol. coil power supply, nominal: 27 V (constant)

Supply current I: 27 mA

Coil resistance R: 1 kOhm

Voltage coil power supply, actual: 22 - 27 V

Relay activation time t: <.5 ms

Current carried by the contacts Ist: 3 A

Frequency band transmitted by the contacts f: 0 - 9 kHz

Dimensions: 2 x 1.8 x 1 .3 cm
