Anti-interference network filter with computer network socket

Mains anti-interference filter with the symbol: IJ-NO6CE-S, RoHS certified.

This is a filter dedicated to all devices powered from the mains up to 250V/6A 50-60Hz.

It was developed using both capacitive and inductive elements (see the plate rated).

Designed to filter mains interference, both input - radios, audio equipment, sensitive measuring devices, and output - all transformer-powered devices, converters, other electrical media that may send electrical impulses to the mains during operation.

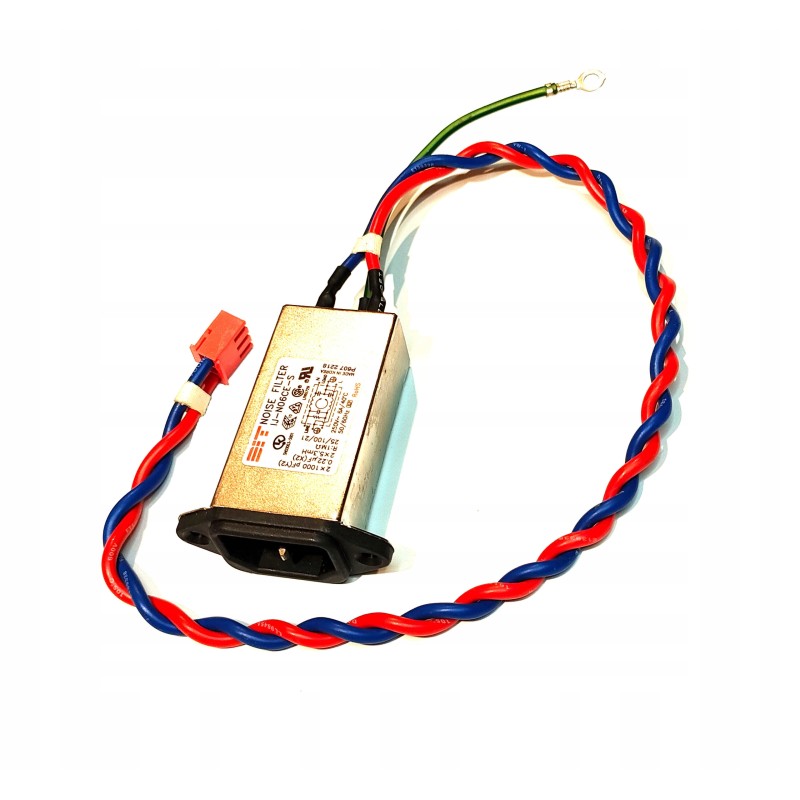

The filter diagram is shown is on the rating sticker on the housing (photo) and the following elements were used in its construction:

2 x 1000pF(Y2)

0.22uF(X2)

R: 1MOhm

chokes: 25/100/21

This is a new product, never assembled, intended for retail sale as overproduction of professional power equipment.
