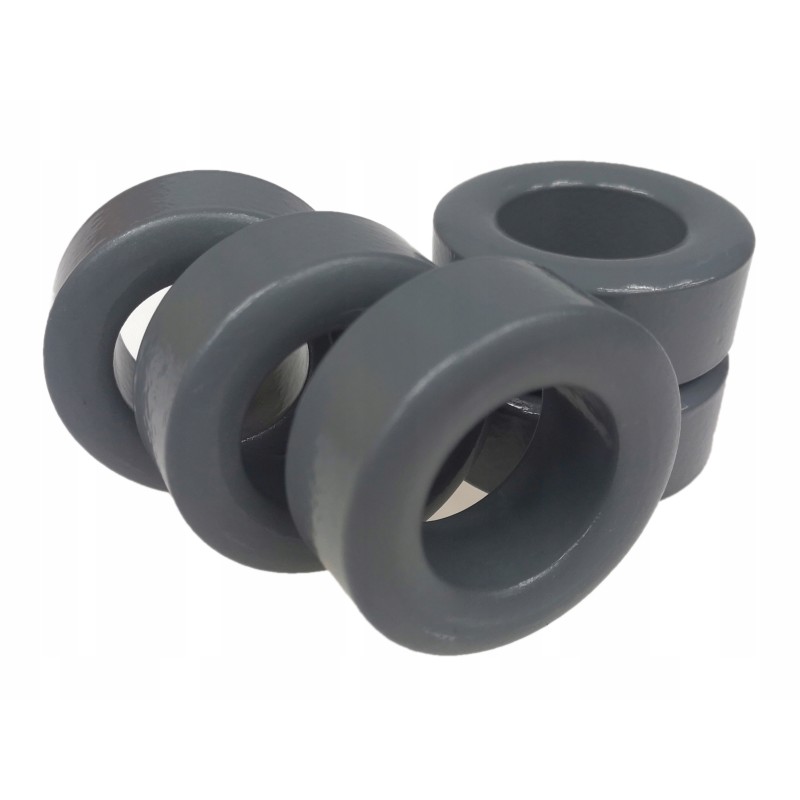

RTF ferrite core 25x15x10 sm100 al 10200

RTF ferrite ring (toroidal) cores

Purchase of one piece means purchasing one core described in the auction topic.

Core material: Mn-Zn (0.1 to 0.2 MHz)

Application:

pulse transformers

signal transformers

linear filters

inductive chokes

Product features:

closed magnetic circuit,

low leakage inductance,

for the production of compensated chokes and transformers,

core covered with a layer of insulation increasing the safety properties of the finished element.

The table below shows the list of available cores on other auctions. table legend:

A - outer diameter of the core

B - diameter of the hole inside the core

C - height (thickness) of the core

HP - high permeability

P - power material
