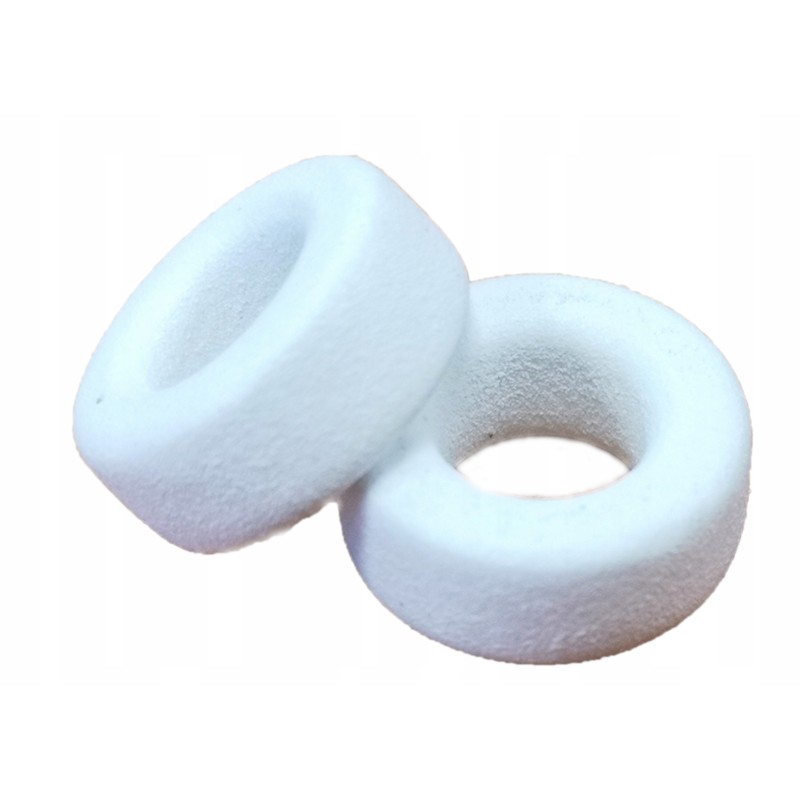

Ferrite core rtf 10x6x4 3f3 al 740

RTF ferrite ring (toroidal) cores

Purchase of one piece means purchasing one core described in the auction topic.

Core material: Mn-Zn (0.2 to 0.5 MHz)

Application:

pulse transformers

signal transformers

linear filters

inductive chokes

Product features:

closed magnetic circuit,

low leakage inductance,

for the production of compensated chokes and transformers,

The table below shows the list of available cores in other auctions. table legend:

A - diameter outer core diameter

B - diameter of the hole inside the core

C - height (thickness) of the core

HP - high permeability

P - power material

table legend:

A - outer diameter of the core

B - diameter of the hole inside the core

C - height (thickness) ) core

HP - high permeability

P - power material
