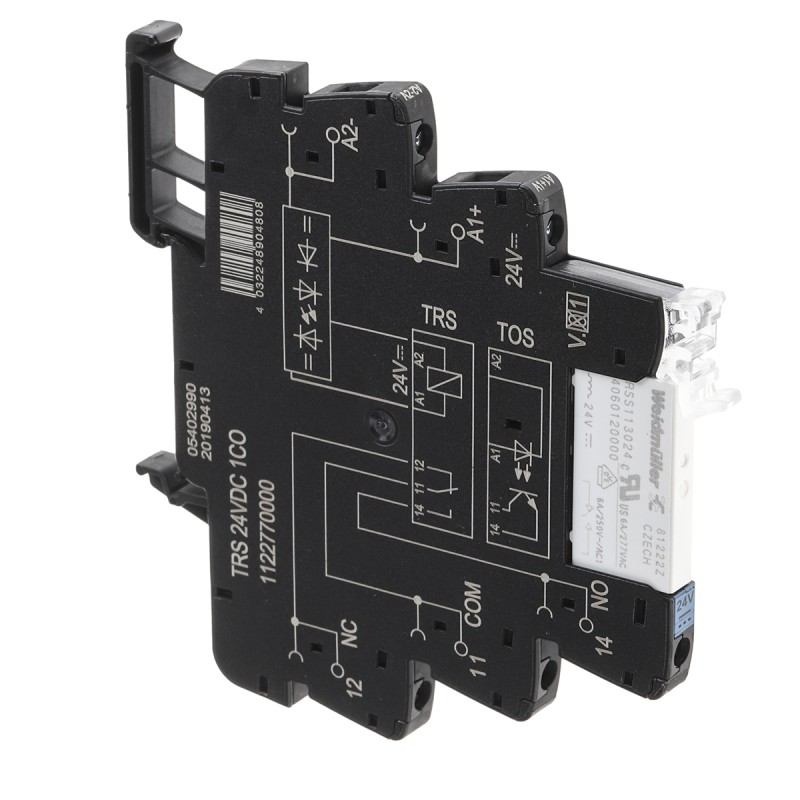

    1 pcs - Weidmuller TRS Series Interface Relay, DIN Rail Mount, 24V Coil, SPDT, 1-Pole, 6A Load
    • 1 pcs - Weidmuller TRS Series Interface Relay, DIN Rail Mount, 24V Coil, SPDT, 1-Pole, 6A Load
    • 1 pcs - Weidmuller TRS Series Interface Relay, DIN Rail Mount, 24V Coil, SPDT, 1-Pole, 6A Load
    • 1 pcs - Weidmuller TRS Series Interface Relay, DIN Rail Mount, 24V Coil, SPDT, 1-Pole, 6A Load
    • 1 pcs - Weidmuller TRS Series Interface Relay, DIN Rail Mount, 24V Coil, SPDT, 1-Pole, 6A Load

    1 pcs - Weidmuller TRS Series Interface Relay, DIN Rail Mount, 24V Coil, SPDT, 1-Pole, 6A Load

    Allparts-UK/15/R/892-8789
    Weidmuller
    £28.42
    Delivery: 4-7 business days
    Quantity
    661 Items

    Product Details
    Weidmuller
    Allparts-UK/15/R/892-8789
    1122770000
    661 Items

    Data sheet

    Manufacturer
    WEIDMÜLLER
    Dimensions
    90 x 6.4 x 88mm
    Height
    88mm
    Length
    90mm
    Contact material
    silver alloy
    Depth
    6.4mm
    Number of poles
    1
    Input current
    10mA
    A-Supplier
    Allparts-UK-R
    Series
    TRS
    Terminal Type
    Screw
    Maximum Operating Temperature
    +60°C
    Mounting Type
    DIN Rail
    Minimum Operating Temperature
    -40°C
    Standards Met
    CE, CULus, EAC, RoHS Compliant
    Contact Configuration
    SPDT
    Life
    5000000 cycles
    Special Features
    Protection Degree IP 20
    Operating Temperature Range
    -40 - +60°C
    Relay Type
    Electro Mechanical
    Maximum Input Voltage
    230V
    Switching Voltage
    250V ac
    Input Voltage Range
    5 - 230V
    Relay Switching Classification
    General Purpose Relay
    Load Current Rating
    6A
    Load Voltage Rating
    250V ac
    Coil Voltage
    24V
