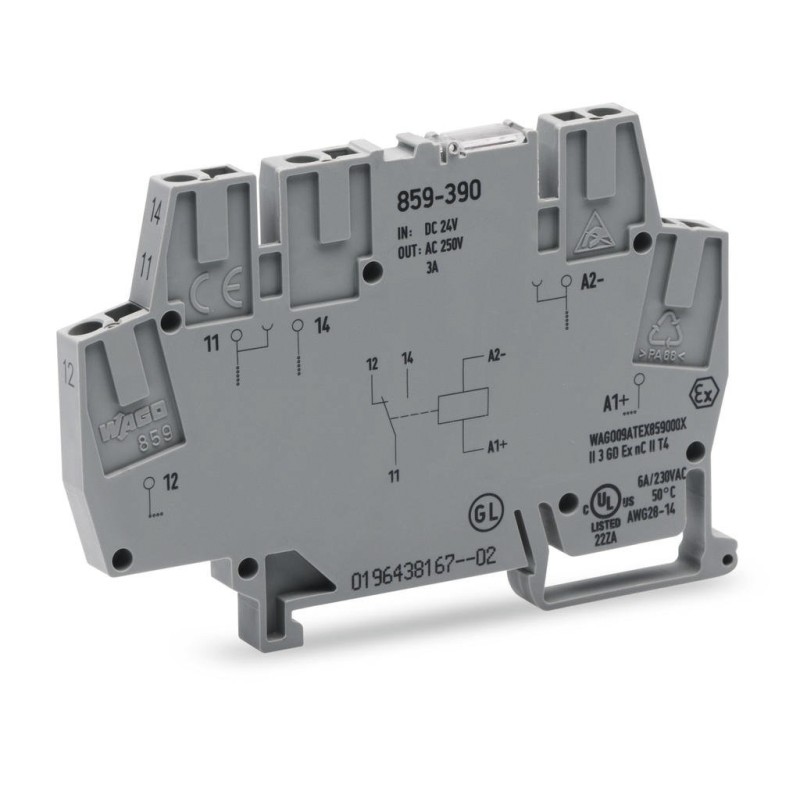

    1 pcs - Wago 859 Series Interface Relay, DIN Rail Mount, 24V dc Coil, SPDT, 5A Load
    • 1 pcs - Wago 859 Series Interface Relay, DIN Rail Mount, 24V dc Coil, SPDT, 5A Load

    1 pcs - Wago 859 Series Interface Relay, DIN Rail Mount, 24V dc Coil, SPDT, 5A Load

    Allparts-UK/15/R/180-3051
    WAGO
    £40.11
    Delivery: 4-7 business days
    Quantity
    48 Items

    Product Details
    WAGO
    Allparts-UK/15/R/180-3051
    859-390
    48 Items

    Data sheet

    Manufacturer
    WAGO
    Dimensions
    6 x 56 x 91mm
    Height
    56mm
    Length
    6mm
    Contact material
    silver alloy
    Depth
    91mm
    Input current
    12mA
    A-Supplier
    Allparts-UK-R
    Series
    859
    Terminal Type
    Cage Clamp
    Maximum Operating Temperature
    +70°C
    Mounting Type
    DIN Rail
    Minimum Operating Temperature
    -25°C
    Standards Met
    DNV GL TAA00001D1, EN 61010-2-201, EN 61373, EN 61810-1, GL, NK TA17255M, PRS TE/1989/880590/13, UL, UL E175199 Sec.6
    Contact Configuration
    SPDT
    Life
    5 x 10^6 (Mechanical) cycles, 50 x 10^3 (Electrical) cycles
    Special Features
    LED Indication
    Operating Temperature Range
    -25 - +70°C
    Maximum Input Voltage
    24V dc
    Switching Voltage
    250V ac
    Input Voltage Range
    (Maximum) 24V dc
    Relay Switching Classification
    Miniature Switching Relay
    Load Current Rating
    5A
    Load Voltage Rating
    250V ac
    Coil Voltage
    24V dc
