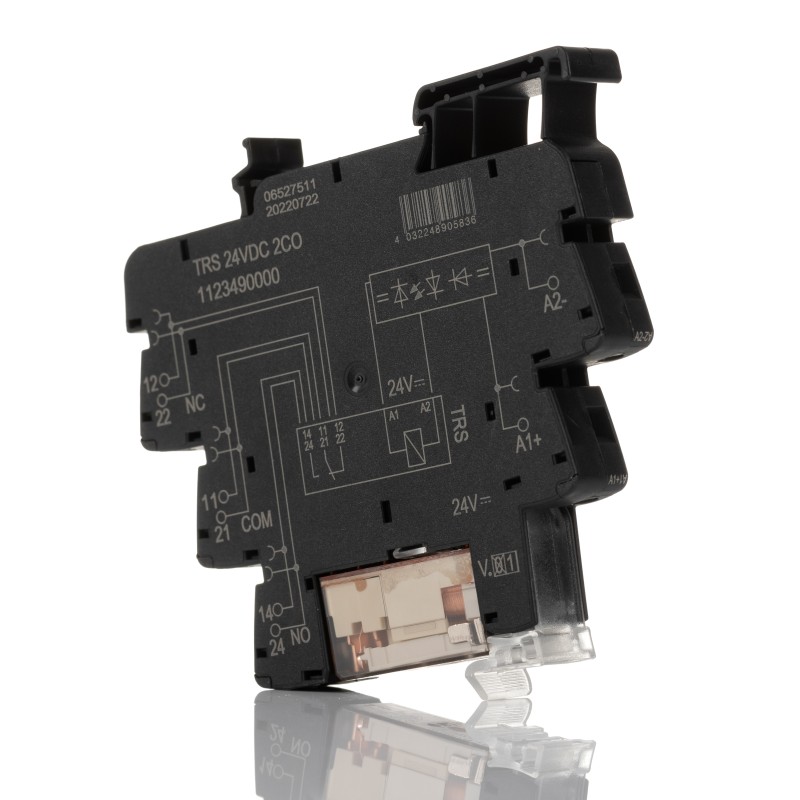

    1 pcs - Weidmuller TRS Series Interface Relay, DIN Rail Mount, 24V Coil, DPDT, 2-Pole
    • 1 pcs - Weidmuller TRS Series Interface Relay, DIN Rail Mount, 24V Coil, DPDT, 2-Pole
    • 1 pcs - Weidmuller TRS Series Interface Relay, DIN Rail Mount, 24V Coil, DPDT, 2-Pole
    • 1 pcs - Weidmuller TRS Series Interface Relay, DIN Rail Mount, 24V Coil, DPDT, 2-Pole
    • 1 pcs - Weidmuller TRS Series Interface Relay, DIN Rail Mount, 24V Coil, DPDT, 2-Pole

    1 pcs - Weidmuller TRS Series Interface Relay, DIN Rail Mount, 24V Coil, DPDT, 2-Pole

    Allparts-UK/15/R/892-8808
    Weidmuller
    £35.12
    Delivery: 4-7 business days
    Quantity
    53 Items

    Product Details
    Weidmuller
    Allparts-UK/15/R/892-8808
    1123490000
    53 Items

    Data sheet

    Manufacturer
    WEIDMÜLLER
    Dimensions
    90 x 12.8 x 88mm
    Height
    88mm
    Length
    90mm
    Contact material
    silver alloy
    Depth
    12.8mm
    Number of poles
    2
    Input current
    20mA
    A-Supplier
    Allparts-UK-R
    Series
    TRS
    Terminal Type
    Screw
    Maximum Operating Temperature
    +60°C
    Mounting Type
    DIN Rail
    Minimum Operating Temperature
    -40°C
    Standards Met
    CE, CULus, EAC, RoHS Compliant
    Contact Configuration
    DPDT
    Life
    30 x 10^6 Cycles
    Special Features
    Illuminated Ejection Lever, Various Protective Circuits in the Input
    Operating Temperature Range
    -40 - +60°C
    Relay Type
    Interface Relay
    Maximum Input Voltage
    230V
    Switching Voltage
    250V ac
    Input Voltage Range
    24V dc
    Relay Switching Classification
    General Purpose Relay
    Coil Voltage
    24V
