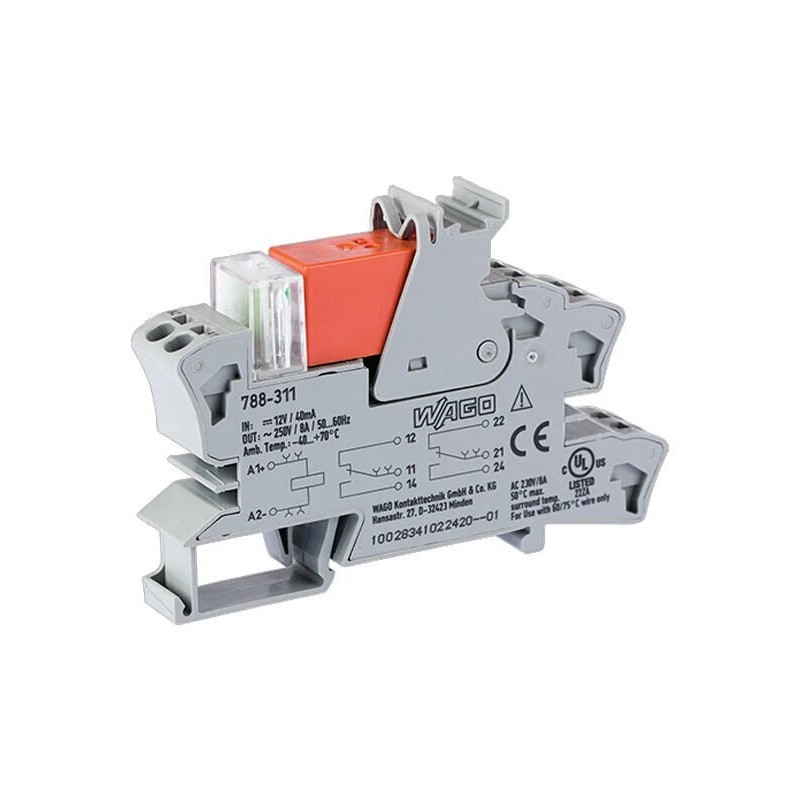

    1 pcs - Wago 788 Series Interface Relay, DIN Rail Mount, 12V dc Coil, DPDT, 8A Load
    • 1 pcs - Wago 788 Series Interface Relay, DIN Rail Mount, 12V dc Coil, DPDT, 8A Load

    1 pcs - Wago 788 Series Interface Relay, DIN Rail Mount, 12V dc Coil, DPDT, 8A Load

    Allparts-UK/15/R/180-3038
    WAGO
    £25.64
    Delivery: 4-7 business days
    Quantity
    144 Items

    Product Details
    WAGO
    Allparts-UK/15/R/180-3038
    788-311
    144 Items

    Data sheet

    Manufacturer
    WAGO
    Dimensions
    15 x 54 x 86mm
    Height
    54mm
    Length
    15mm
    Contact material
    silver alloy
    Depth
    86mm
    Input current
    36mA
    A-Supplier
    Allparts-UK-R
    Series
    788
    Accessory Type
    Relay Module
    Terminal Type
    Cage Clamp
    Maximum Operating Temperature
    +50°C
    Mounting Type
    DIN Rail
    Minimum Operating Temperature
    -25°C
    Standards Met
    EN 61010-2-201, EN 61373, EN 61810-1, UL, UL E175199 Sec.6
    Contact Configuration
    DPDT
    Life
    1 x 10^3 (Electrical) cycles, 30 x 10^6 (Mechanical) cycles
    Special Features
    IP20 Degree of protection, LED Indication
    Operating Temperature Range
    -25 - +50°C
    Maximum Input Voltage
    12V dc
    Switching Voltage
    250V ac
    Input Voltage Range
    Maximum 12V dc
    Load Current Rating
    8A
    Load Voltage Rating
    250V ac
    Coil Voltage
    12V dc
