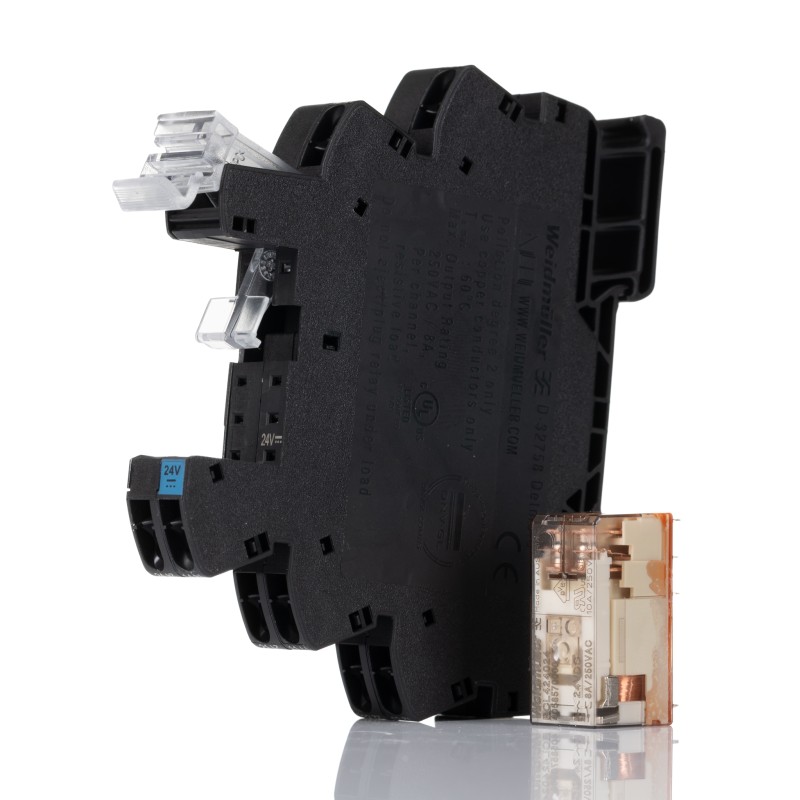

    1 pcs - Weidmuller TRZ Series Interface Relay, DIN Rail Mount, 24V Coil, DPDT, 2-Pole
    • 1 pcs - Weidmuller TRZ Series Interface Relay, DIN Rail Mount, 24V Coil, DPDT, 2-Pole
    • 1 pcs - Weidmuller TRZ Series Interface Relay, DIN Rail Mount, 24V Coil, DPDT, 2-Pole
    • 1 pcs - Weidmuller TRZ Series Interface Relay, DIN Rail Mount, 24V Coil, DPDT, 2-Pole

    1 pcs - Weidmuller TRZ Series Interface Relay, DIN Rail Mount, 24V Coil, DPDT, 2-Pole

    Allparts-UK/15/R/892-8864
    Weidmuller
    £35.12
    Delivery: 4-7 business days
    Quantity
    191 Items

    Product Details
    Weidmuller
    Allparts-UK/15/R/892-8864
    1123610000
    191 Items

    Data sheet

    Manufacturer
    WEIDMÜLLER
    Dimensions
    90 x 12.8 x 88mm
    Height
    88mm
    Length
    90mm
    Contact material
    silver alloy
    Depth
    12.8mm
    Number of poles
    2
    Input current
    20mA
    A-Supplier
    Allparts-UK-R
    Series
    TRZ
    Accessory Type
    Relay Module
    Terminal Type
    Spring Clamp
    Maximum Operating Temperature
    +60°C
    Mounting Type
    DIN Rail
    Minimum Operating Temperature
    -40°C
    Standards Met
    CE, CULus, EAC, RoHS Compliant
    Contact Configuration
    DPDT
    Life
    30000000 Cycle
    Special Features
    Illuminated Ejection Lever, Various Protective Circuits in the Input
    Operating Temperature Range
    -40 - +60°C
    Maximum Input Voltage
    230V ac/dc
    Switching Voltage
    250V ac/dc
    Input Voltage Range
    24 - 230V ac/dc
    Turn On Time
    <,11ms
    Turn Off Time
    <,10ms
    Relay Switching Classification
    General Purpose Relay
    Coil Voltage
    24V
