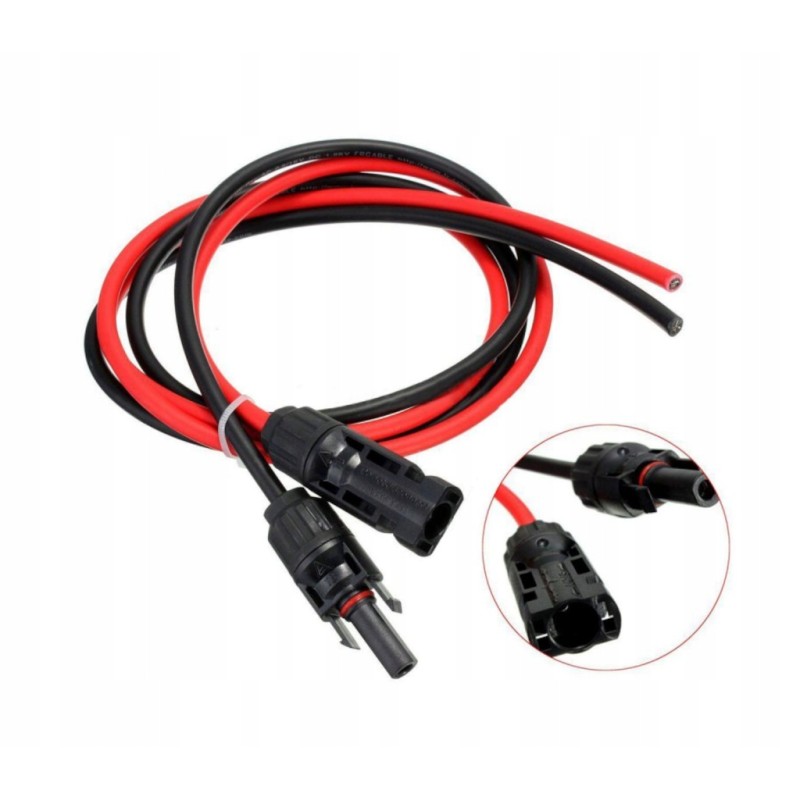

Set of 2 x 5 m solar cables 1 x 4 mm2

Application: the set is used to connect a photovoltaic module with a voltage regulator. The set includes two 5m sections. solar cable with a cross-section of 4 mm2, red and black sheath, terminated on one side with high-quality serial connectors.

Technical data:

Tinned copper conductors cl.5

Insulation: non-toxic cross-linked elastomer

Non-toxic cross-linked elastomer jacket

Coat color red RAL3013, black RAL9005

Flammability restricted according to CEI EN 60332-1-2

Low emission of toxic gases, toxicity index <.2%

Low smoke emission and penetration >,60%

Resistance to UV radiation according to HD 605

Ozone resistance according to CEI EN 50396

Expected service life (durability) 25 years

Long-term properties: 20,000 h at 120°C

Direct current (DC) resistance according to CEI EN 60228

Rated voltage Uo/U 0.6/1 kVac 0.9/1.5 kVcc

Maximum voltage 1.2 kVac 1.8 kVcc

Test voltage 6.5 kVac 15 kVcc

Maximum operating temperature 90°C

Short circuit temperature 250°C

Minimum installation (assembly) temperature -25°C

Bending radius ø x 6
