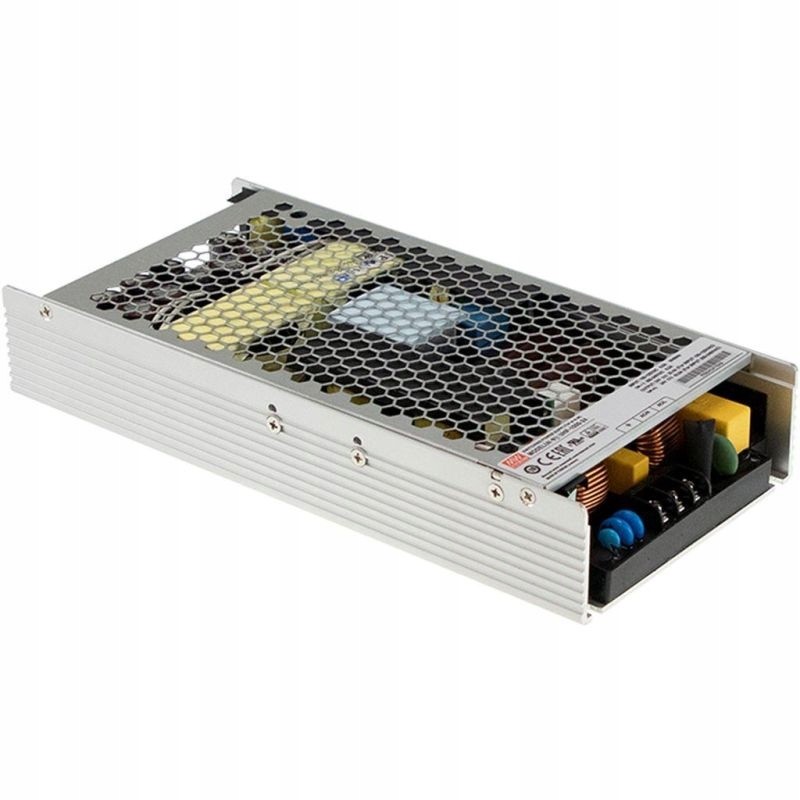

Air conditioning power supply 12v indelb converter

Product name: Built-in power supply - Indel B from GoMarket

Symbol: INZ9991250

Color: Silver

Material: Aluminum

Size: 240 x 115 x h41 mm

Manufacturer: Indel B

Unit of measurement: piece

Description: Built-in power supply by Indel B

The UHP-1000 series is a slimline power supply with a single output of 1000 W

and a low-profile 41 mm design

Adopting a full input range of 90 ~ 264 VAC, the whole series provides a line of output voltages of 12 V, 24 V, 36 V and 48V

In addition to high efficiency up to 96%, the entire series operates in the range from -30

to 70 below ? fanless air convection

UHP-1000 has full 5G protection and anti-vibration functions

It complies with international safety regulations such as

TUV EN62368-1, UL62368-1, and the design refers to EN61558-1 and EN60335-1

UHP series -1000 provides high efficiency power supply solution

for various industrial applications

Power supply for use with Plein Aircon IndelB air conditioning

SPECIFICATIONS - TECHNICAL DATA:

technology: AC / DC

power format: box type - closed

output power: 1000W

output voltage : 12V

output current: 80A

input voltage: 90 - 264V

length: 240 mm

width: 115 mm

height: 41 mm

weight: 1.75 kg
