Battery isolator charging separator 12v 140a

*BATTERY ISOLATOR CHARGING SEPARATOR 12V 140ASymbol 43591

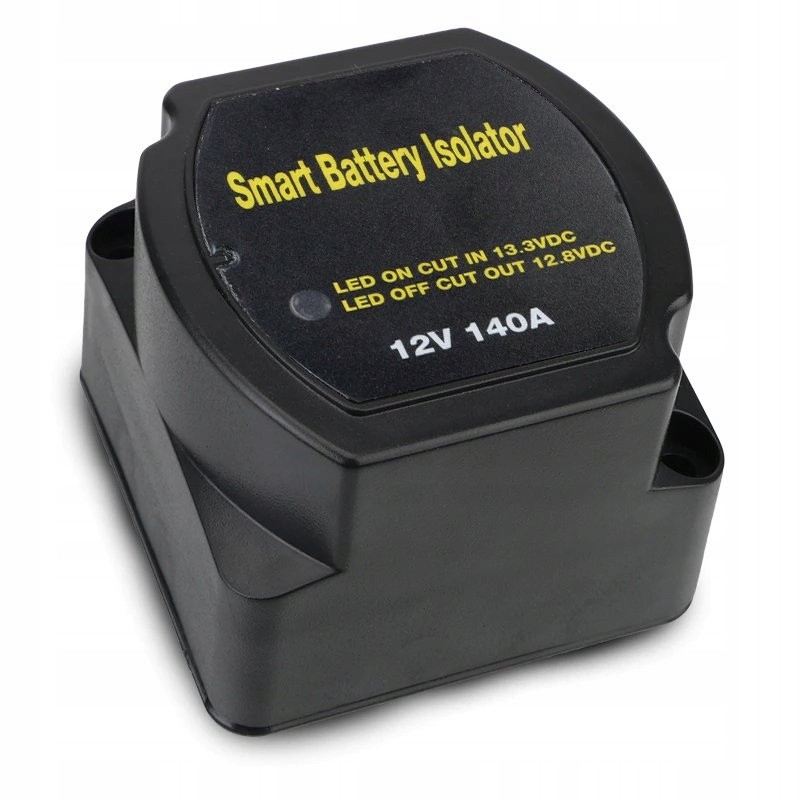

Battery isolator 12V 140A, charging separator

The battery isolator charges the additional battery while the vehicle engine is running and prevents the main battery from discharging during standstill. The device monitors the voltage of the main battery - if it detects its increase above 13.3V, it will close the relay contacts, causing current to flow to the second battery (the LED indicator will light up). After turning off the ignition (below 12.8V), the relay will open the contacts so as not to discharge the main battery.

⚠️ATTENTION! During installation, please follow all safety rules for assembly and use.

The price is for 1 piece

☑️FEATURES

allows you to simultaneously charge two 12-volt batteries in a vehicle, camper, etc. without having to worry about using an additional battery when parked

voltage 12V

universal use : cars, campers, boats, etc.

charging current: 140A (continuous value), 160A (temporary value)

has an LED indicating the operation of the device

switches the relay on from 13.3V up

switches the relay off at 12, 8V down

current consumption by the device: STANTBY 1mA, CHARGING 250mA

switching time: 3 - 5 seconds

dimensions: 6.5cm x 5.2cm x 6.7cm

tightness class IP65
