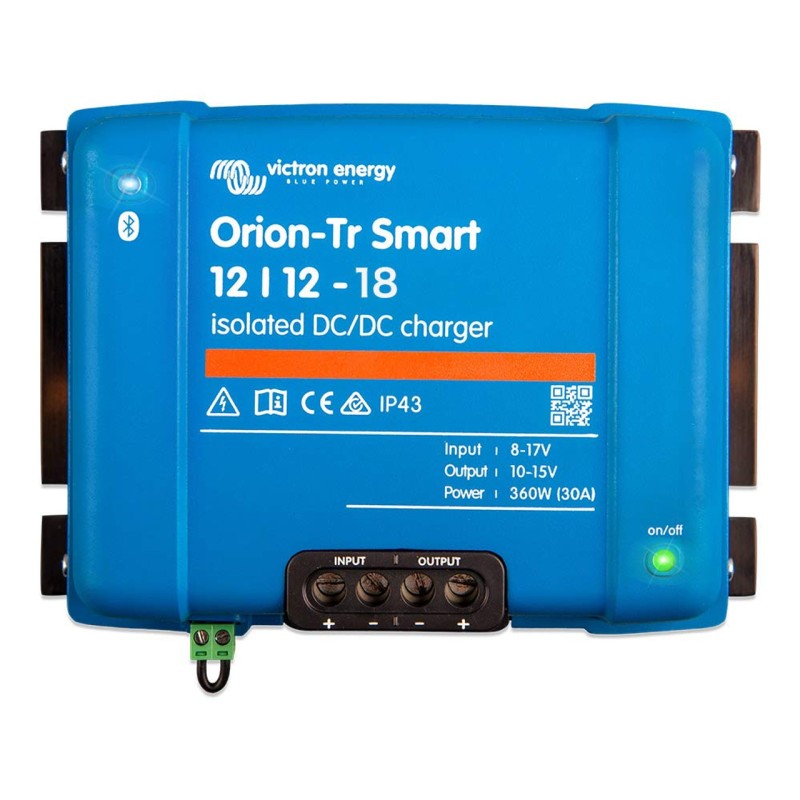

Orion tr smart 12 12 18 insulated dc charger

Orion-Tr Smart Isolated DC-DC Charger 12/12-18 Victron Energy

Orion-Tr Smart 12/12-18 Isolated DC-DC Charger (220W) The Orion-Tr Smart DC-DC Charger is a professional, adaptive, 3-stage DC to DC charger with built-in Bluetooth.

It is intended for use in dual battery systems in vehicles or boats where the main battery is charged by a (smart) alternator and starter battery. The device can be monitored and programmed via Bluetooth, can be remotely controlled with a remote on/off switch, and is equipped with a motor detection mechanism.

The Orion-Tr Smart charger can be used in 12V or 24V installations and is suitable for both lead-acid and lithium batteries. Models with a power of up to 400W are available, and an unlimited number of devices can be connected in parallel to increase the output power.

It can operate at temperatures of up to 55°C, and maintains full nominal power at temperatures up to 40°C.

DC input voltage (V): 12

DC output voltage (V): 12

DC input voltage range (V): 8-17

DC output voltage adjustment range (V): 10-15

Continuous output current (A): 18

Maximum current (A): 25

Dimensions (mm): 130 x 186 x 70

Weight (kg): 1.3

Product warranty (years): 5

Isolated DC-DC charger Orion-Tr Smart 12/12-18 (220W)
