Battery discharge protection xh m609 6 50v

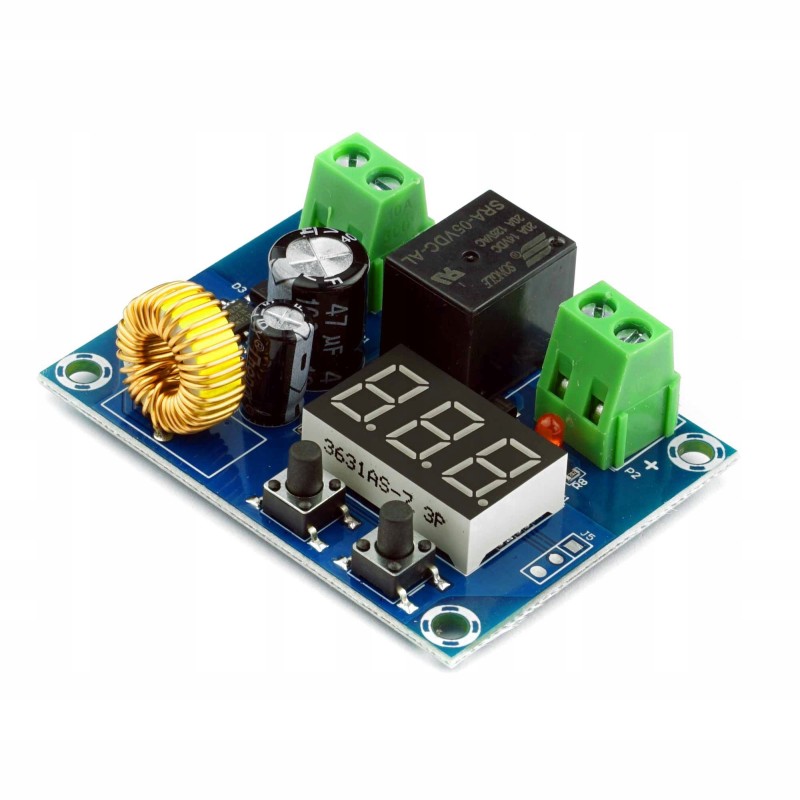

Battery protection against excessive discharge, operating with a voltage ranging from 6V to 50V. The module has a display showing the current voltage on the connected battery and 2 buttons that allow you to easily set the lower voltage limit at which the power supply is to be cut off and the voltage at which the module is to release the voltage again after recharging the battery. Thanks to it, you will not allow the battery to discharge below a safe level, which will have a positive impact on its condition and lifespan and protect it against damage. There is a diode on the board indicating the relay status.

Module configuration:

Press + 1 time to display the currently set power cut voltage value.

Long press + until the display starts flashing - now set your preferred power cut value. Wait 3 seconds the value will be saved.

Press - 1 time to display the currently set hysteresis value.

Long press - until the display starts flashing - now set the value by which the voltage must increase to restart the battery supply. After 3 seconds the value will be saved.

Specification:

Supported voltage: 6V to 50V DC

measurement accuracy: 0.1V

Power consumption: less than 1W

the relay supports: 250V AC and 10A or 14V DC and 20A

dimensions: 57mm with 42mm x 19mm

Battery discharge protection XH-M609 6-50V
