Voltage converter 12v 230v 6000w sine for camper

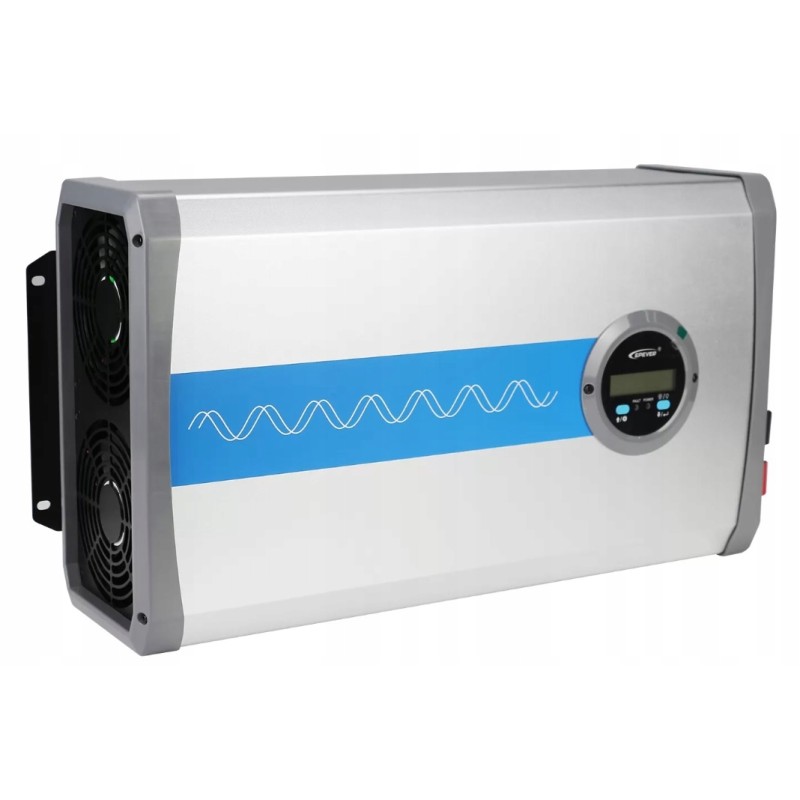

SINUS voltage converter 12V/230V 3000W 6000W The IPower series product is a sine wave converter (pure sine wave), converting 12VDC voltage into 220/230VAC

IPower converters are ideal for photovoltaic systems, thanks to the high input voltage threshold (16V).

The converter has a wide range operating temperature, is easy to install and operate. The converter can be used, among others, for powering lighting, devices in campers/caravans, small photovoltaic installations, etc.

Output voltage waveform: pure sine wave

Output voltage 220/230VAC

LED indicators signaling operating status and faults

Low idle consumption

Max. Efficiency up to 93%

Input protection: Over-voltage protection, under-voltage protection

Output protection: Over-load protection, short-circuit protection

Over-temperature protection: Temperature-sensitive fan, Inverter automatically turns off when overheating

USB connector 5VDC/1A

PARAMETERS:

Continuous power: 3000W

Instantaneous power: 6000W (5s)

DC input voltage: 10.8～16VDC

AC output voltage: 220V - 230V

Voltage waveform output: Sine wave (so-called "pure sine")

Output voltage frequency: 50/60±0.2Hz

Efficiency at full load: >, 93%

No-load current: <,1.6A

USB socket 1 A: Yes

Mounting: Φ6mm

Dimensions: 557×231.5×123 mm

Mounting dimension: 532×145 mm

Weight: 10.5kg

Operating temperature: -20℃~+45℃

Storage temperature: -35℃~+70℃

Humidity: <, 95%(NC)

Protection class: IP20

Connect a 3-wire cable to the socket (ground, N, L) to obtain 230V power supply.
