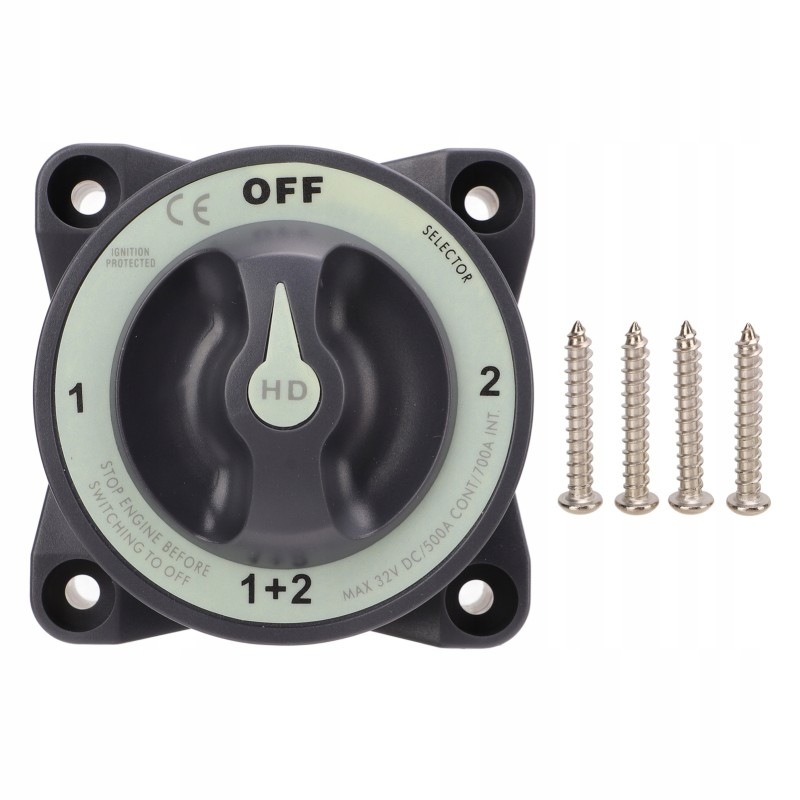

Battery disconnect switch 500a 32v dc

Feature:

1. Premium Material: The battery switch is made of premium ABS and nickel-plated red copper material, no rust, sturdy and durable.

2. Feature: Pre-break contact design allows switching between battery packs without interrupting power, with AFD.

3. Excellent performance: Good electrical conductivity, IP66 waterproof, prevent strong water splashing, with ignition protection, safe and reliable.

4. Simple Installation: Installation is simple, mounting holes accept 1/4 inch screw (M6), 1/2 inch clamp screw (M12), convenient to use, save your efforts.

5. Wide Application: 500A continuous power rating suitable for outboards and small gasoline or diesel engines, ideal for RVs or boats.

Specification:

Item Type: Battery Disconnect Switch,

Material: ABS, Nickel-plated Red Copper

Switch Type: Heavy Duty Selector 4 Position Battery Switch with AFD

Switch Positions: 4 (OFF-1-2-1 2)

Battery Combination: Yes

Alternator Field Disconnect: Yes

Maximum Voltage: 32V DC

Terminal Pin Torsion: 220 in-lb ( 24.86 Nm)

Continuous rating: 500A

Intermittent rating: 700A (5 min)

30 s cranking rating: 1600A

Battery inputs: 2

Clearance for 4/0 AWG cables: Approx. 27.94mm/1.10in

Cable quantity to meet ratings: two cables or terminal

Cable size to meet ratings: 4/0 AWG (120 mm²)

Mounting holes: Accept 1/4 inch (M6) screw

Material Pin: Tinned Copper

Terminal Pin Size: 1/2 inch (M12)

Feature: "Make Before Break" pin design allows you to switch between battery packs without interrupting power

Application: Perfect for Boat or RV

Package List:

1 x Disconnect Switch battery,

4 x set screws
