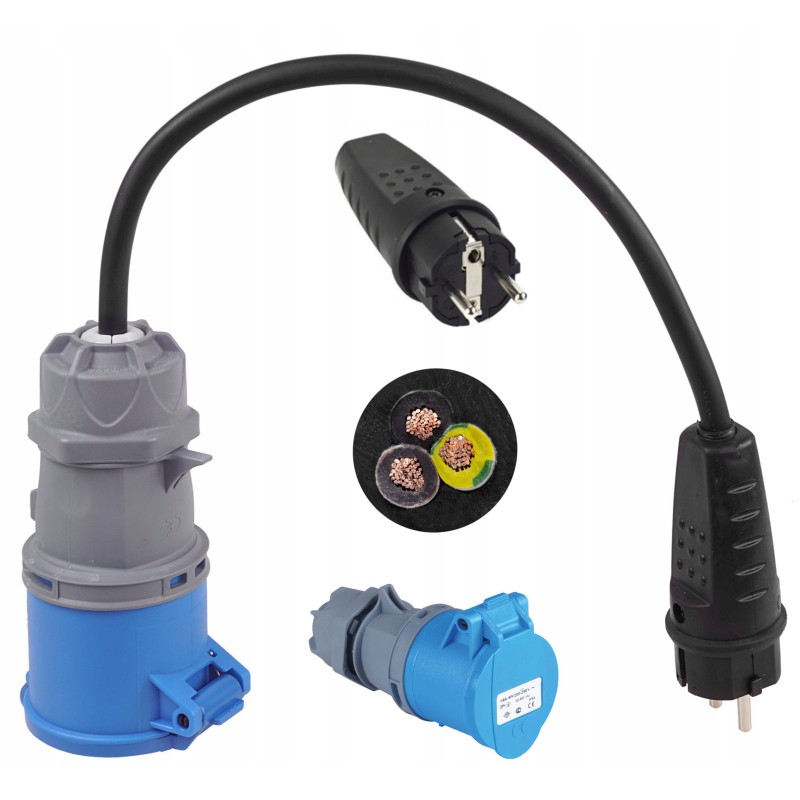

Adapter, CEE plug, 230v socket, IP44 adapter

Portable adapter - portable socket, camping, 230V, 16A, 3P, IP44. Index: WG>,GP163

Converter adapter made of flexible rubber cable (H05RR-F) 3x2.5mm², total length approx. 50 cm, and very durable Unischuko sockets and plugs. High quality workmanship ensures long service life, safety and reliability.

Cable insulation ensures resistance to damage.

The adapter has the IP44 standard.

The socket with a flap is grounded (2P+Z).

Technical data :

plug: Unischuko 16A 2P+Z,

socket: 16/3 CEE,

cable: OW 3*2.5 total length of the cable used in the adapter: 0.5m,

nominal voltage: 230V,

degree tightness: IP44.

Adapter used to connect a caravan, camper or yacht to a power source. Cable with RUBBER OW sheath and insulation, Polish, durable. Intended for use in portable and mobile receivers with medium power consumption.

Technical data :

Cable type: OW (H05RR-F)

Rated voltage: 300/500 V

Number and rated cross-section of conductors: 3x2.5 mm²

Rated insulation thickness: 0.9 mm

Rated tire thickness: 1, 1 mm

Approximate wire diameter: 10.2 mm

Max. diameter of wires in the core: 0.24 mm

Max wire resistance at 20°C: 8.21 Ω/km

CE certificate.

The 16A/3P socket is characterized by resistance to unfavorable factors, durability and reliability. The maximum supported voltage is 250V and the rated current is 16A. The products are grey-blue in color and have a guaranteed protection level of IP44. The contacts are made of brass.

Dimensions: a - 130.0 mm,

b - 75.6 mm,

c - 15.0 mm,

d - 52.0 mm.

For cable: 1.0 ～ 2.5 mm2

Portable plug 2P+Z 16A IP44 has a rubber housing - elastomer filling. Made of rubber, it ensures long product life, impact resistance, petroleum resistance and oil resistance.
