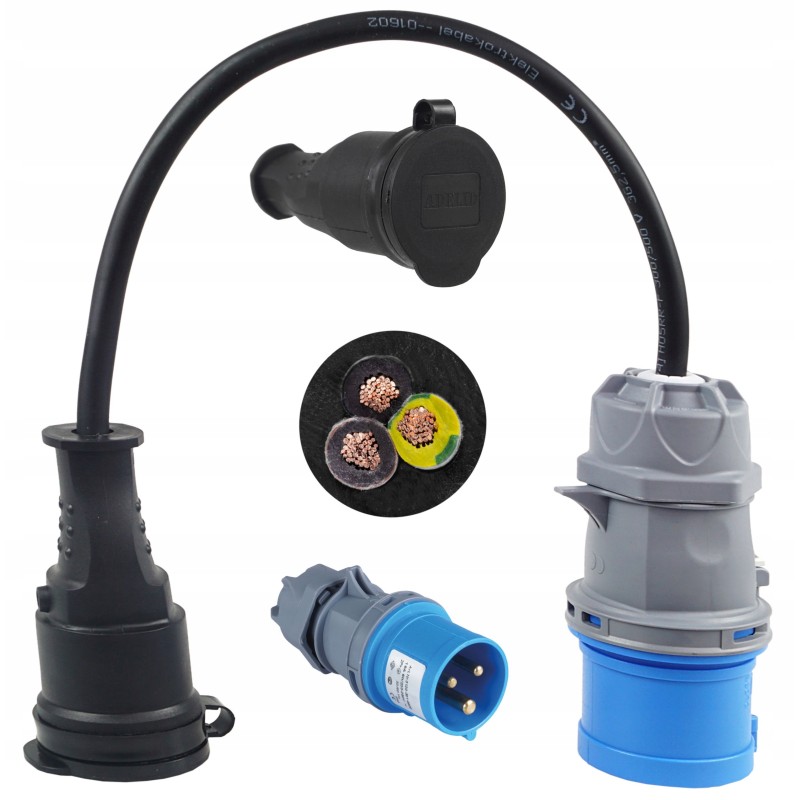

Adapter, CEE plug, 230v socket, IP44 adapter

ADAPTER - ADAPTER, CAMPING, REDUCTION, 16A, 230V, IP44, 0.5m. Index: WP163>,GG

Adapter adapter made of flexible rubber cable (H05RR-F) 3x2.5mm², total length approx. 50 cm, and very durable socket and plug. Cable insulation ensures resistance to damage.

The adapter has the IP44 standard.

The socket with a flap is grounded (2P+Z).

Technical data:

Plug: 16A 3P CEE,

Number of poles: 3,

Socket: Polish - rubber with grounding through a pin,

cable: rubber OW 3*2.5 total length of the cable used in the adapter: 0.5m,

nominal voltage: 230V,

Plug insertion direction: on straight,

tightness level: IP44.

Adapter used to connect a caravan, camper or yacht to the power source.GG'>Cable with RUBBER coating and insulation OW, Polish, durable. Designed for use in portable and mobile receivers with medium power consumption.

Technical data:

Cable type: OW (H05RR-F)

Rated voltage: 300/500 V

Number and nominal cross-section of conductors: 3x2.5 mm²

Rated insulation thickness: 0.9 mm

Rated tire thickness: 1.1 mm

Approximate cable diameter: 10.2 mm

Max. diameter of wires in the core: 0.24 mm

Max wire resistance at 20°C: 8.21 Ω/km

CE certificate.

The 16A/3P plug is characterized by resistance to adverse factors, durability and reliability. The maximum supported voltage is 240V and the rated current is 16A. The products are grey-blue in color and have a guaranteed protection level of IP44. The contacts are made of brass.

Dimensions: a - 120.0 mm,

b - 57.0 mm,

c - 15.0 mm,

d - 53.5 mm.

For cable: 1, 0 ～ 2.5 mm2

GG'>GG'>The socket has a rubber housing - elastomer filling. Ensures IP44 tightness, even during operation! Made of rubber, it ensures long product life, impact resistance, petroleum resistance and oil resistance. 16A/230V.GG'>
