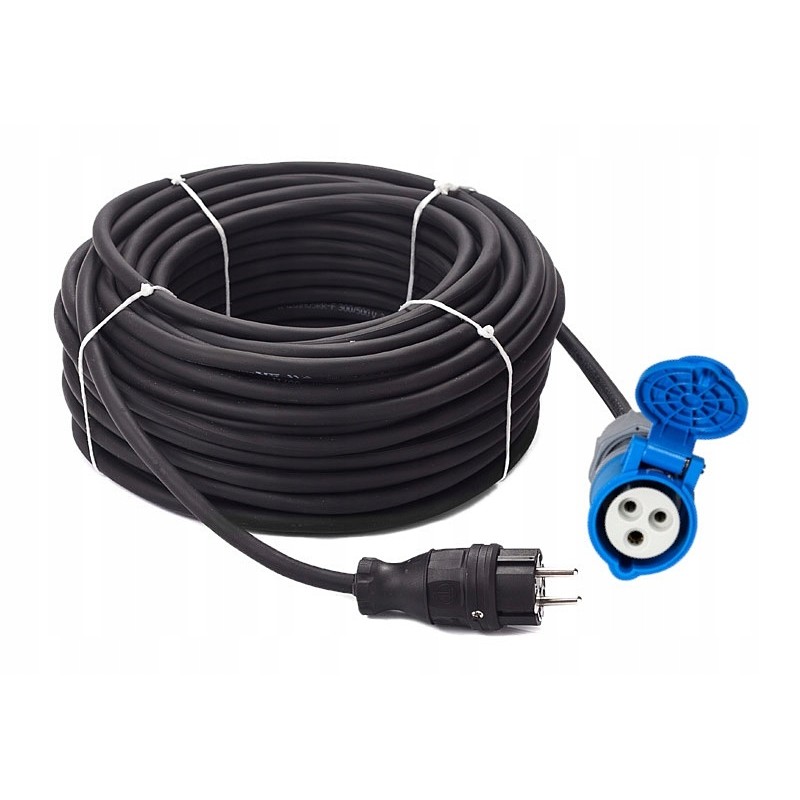

Adapter cable reduction camping cee 16a 230v 10m

Construction extension cable 3*2.5 10 m, with a CEE 16A 3-prong socket and a rubber plug. Index: XY32 10 WG>, GP163

A durable and flexible cable with thick rubber insulation and a solid socket and plug were used to produce the extension cord. is characterized by resistance to unfavorable factors, durability and reliability. The socket is 3-pole. It has a protective flap. The maximum supported voltage is 230V and the rated current is 16A. The product is blue and has a guaranteed protection level of IP44. The contacts are made of brass.

Technical data:

Extension cable length: 10 m,

Cable cross-section: 3*2.5,

Cable type: PVC,

Socket: CEE 16A 230V 3P, (50+60 Hz) blue,

Plug: 16A 230V 2P+Z IP44,

Permissible operating temperatures of the cable:

max. core temperature during cable operation: + 60C,

min. ambient temperature when laying the cable: - 25C,

max. core temperature during short circuit: + 200C.

IP44 tightness, PRICE certificate. In other auctions you will find extension cords of other lengths and cross-sections, 230V extension cords, and many others. At your request, we can make extension cords in a different configuration.

Only with us, excellent quality at the lowest price! Instant order fulfillment! Thousands of satisfied customers!

CABLE LOAD CAPACITY: 1.5 mm2 stranded cable - max load - 14A

2.5 mm2 stranded cable - max load - 20 A

4.0 mm2 stranded cable - max load - 25 A

To calculate the maximum power [W ] of the device connected to the extended extension cord:

multiply (number of phases) x (max load [A]) x (voltage [V])

e.g. single-phase extension cord 230V 3*1.51x14Ax230V - 3220W (coiled - 1/3 power)

e.g. power extension cord 20M 5x1.53x14Ax230V - 9660W (coiled - 1/3 power)

The power of the device should not exceed 90% of the power of the extension cord. Please remember that with a long cable, voltage drops occur and the power of the extension cord is lower.
