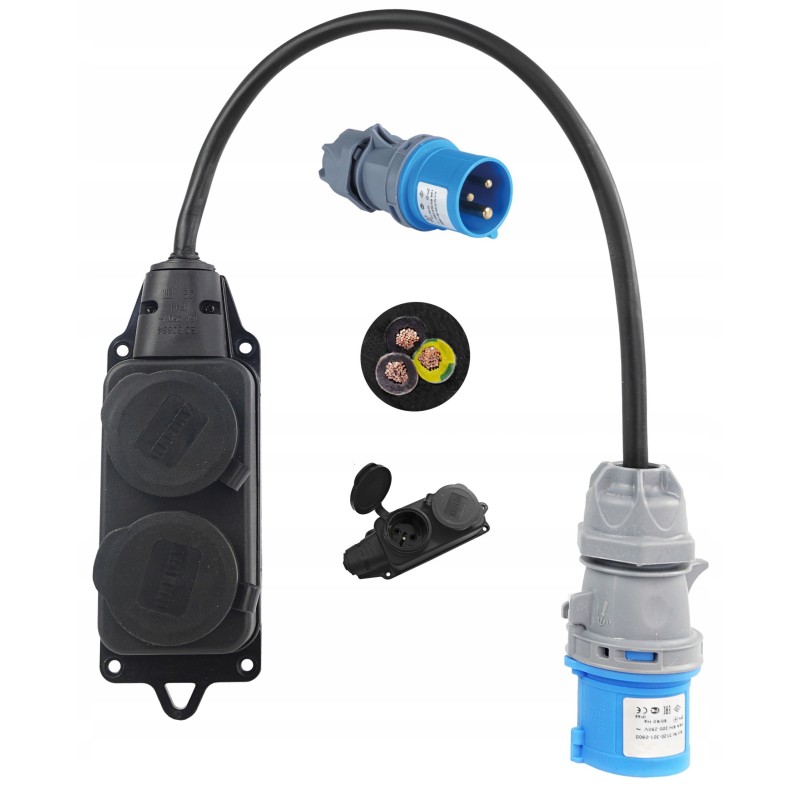

Adapter, CEE plug, 230v socket, IP44 adapter

CAMPING ADAPTER WITH TWO 230V SOCKETS Index: WP163>,2L

Power adapter - reduction from a 16A 3P plug to two 230V 16A sockets - double rubber strip. Made of flexible rubber cable (H05RR-F) 3x2.5mm², total length approx. 50 cm , and a very durable 16A 3P plug and a 230V strip with flaps.

High quality of workmanship ensures long service life, safety and reliability.

Cable insulation ensures resistance to damage.

The adapter has the IP44 standard.

The sockets with flaps are grounded through pin (2P+Z).

Technical data:

plug: 16/3 CEE 16A 3P 230V,

sockets: 2*16A 230V IP44,

work strip: max cable 3*2.5,

cable: OW 3*2.5 total length of the cable used in the adapter: 0.5 m,

nominal voltage: 230V,

tightness level: IP44,

high quality of materials used,

CE certificate.

The 16A plug is resistant to unfavorable factors, durability and reliability. The plug is 3-pole. The maximum supported voltage is 250V and the rated current is 16A. The product is grey-red in color and provides a protection level of IP44. The contacts are made of brass.

Dimensions: a - 124.0 mm,

b - 83.0 mm,

c - 47.0 mm,

d - 6-16.0 mm.

For the cable: 1.0 ～ 4.0 mm2

Double connector - strip, made of durable material, resistant to unfavorable weather conditions. It has a Polish type grounding. Ensures IP44 tightness, even during operation! Made of rubber, it guarantees long service life of the product, impact resistance, petroleum resistance and oil resistance.

Operating range: max. cable 3x2.5 mm.

Cable with RUBBER OW sheath and insulation, Polish, durable. Intended for use in portable and mobile receivers with medium power consumption .

Technical data:

Cable type: OW (H05RR-F)

Rated voltage: 300/500 V

Number and rated cross-section of conductors: 3x2.5 mm²

Cable: OW H05RR-F 3x2.5 mm² (rubber )

Protection level: IP44

Conductor: made of Cu copper (guarantee of low resistance and low power drop on the cable)

Cable coating: rubber with increased resistance to low temperatures (does not stiffen in frost)

CE certificate.
