Battery discharge protection

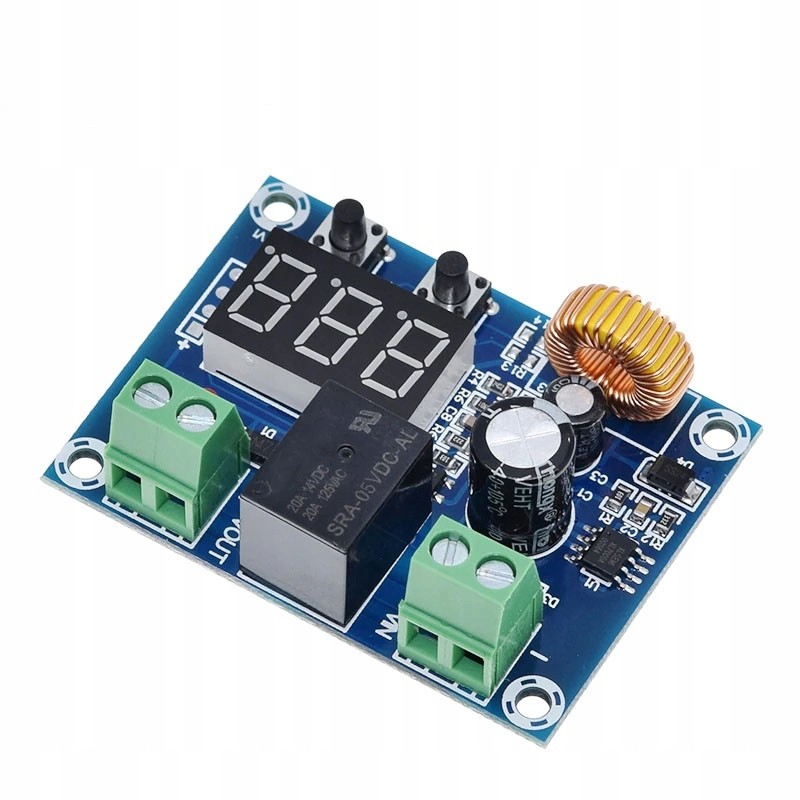

Deep battery discharge protection module. Operating range: 12V - 36V DC

The display shows the current voltage. To be sure of the measurement, check it with a meter and, if necessary, calibrate it. (indications below)

Accuracy: approx. 100mV

Power: approx. 1W

Max. load 10A (relay contacts)

Dimensions 57.2 mm x 42.1 mm

Notes at the beginning:

I noticed that the systems can be recalibrated. So, first you need to set the voltage (V) on the display according to some external meter (option 2).

In addition, a delay can also be set. If we expect an immediate response, the delay must be set to 0 (option 4)

Press the buttons carefully. For example - I am right-handed. If I pressed with my left hand, there were inaccuracies. Only when I did it with my better, right hand, the buttons responded correctly.

OPERATION - WITH (+) and (-) KEYS

Option 1 - press (double click) the micro switch (+)(LEFT) twice until the display dot starts flashing . Then, use the (+) and (-) KEYS TO SET THE LOWER VOLTAGE VALUE AT WHICH THE MODULE WILL DISCONNECT THE RECEIVER. - memorization will take place automatically after a few seconds of no action.

Option 2 - press and hold the (+)(LEFT) microswitch until the display starts flashing. Then, use the (+) and (-) KEYS TO SET THE VOLTAGE VALUE TO BE THE SAME AS ON THE EXTERNAL METER [CALIBRATION] - it will be saved automatically after a few seconds of no action.

Option 3 - press (double click) the (-) microswitch twice (double click) RIGHT) until the DOT AND THE HYSTERESIS VALUE start flashing (hysteresis is the difference between the lower [off] and upper [on] voltage values). Then, use the (+) and (-) KEYS TO SET THE HYSTERESIS VALUE - it will be saved automatically after a few seconds of no action.

Option 4 - press and hold the (-)(RIGHT) microswitch until the display starts flashing. Then, use the (+) and (-) KEYS TO SET THE DELAY IN MINUTES AFTER WHICH THE MODULE WILL DISCONNECT THE RECEIVER. - saving will take place automatically after a few seconds of no activity.

Example: The lower voltage described in option 1 has been set to 11 V

The hysteresis in option 2 has been set to 2 V

This means that the system will disconnect the receiver at 11 V and turn it on again at a voltage of 13V.
