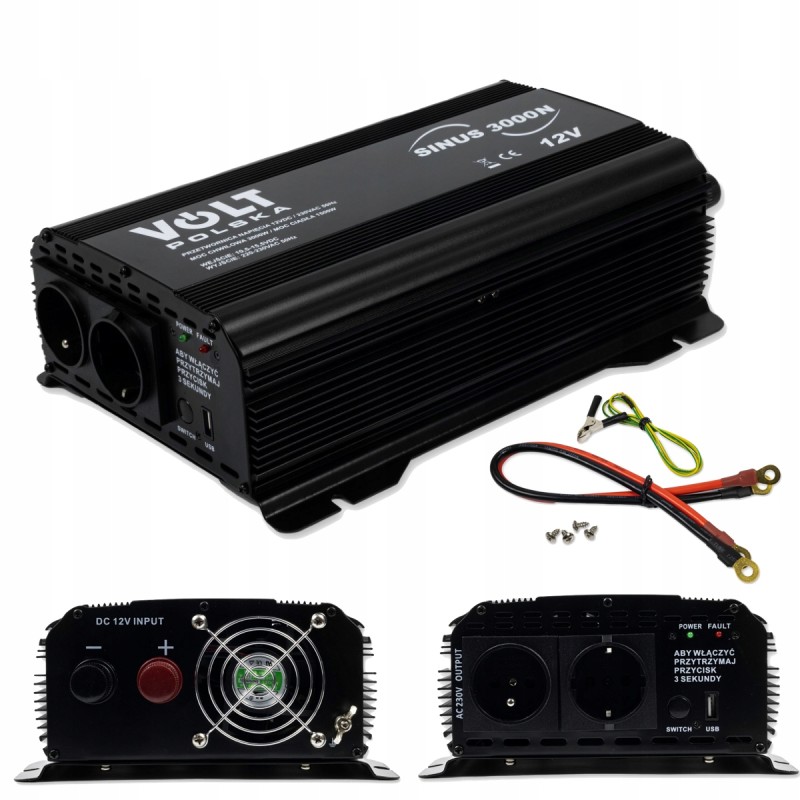

Voltage converter pure sine 12v 230v 3000w

VOLTAGE CONVERTER PURE SINUS 12V/230V 1500W/3000 MOST IMPORTANT FEATURES

Impulse power 3000W

Continuous power up to 1500W

Input voltage: 12V

Output voltage: 230V

Voltage waveform: Pure Sine - identical voltage as from a home electrical socket.

Low power consumption in idle mode

Possibility to connect photovoltaic panels via an MPPT or PWM voltage regulator. The Sinus-3000 12V voltage converter is used to power electrical devices requiring 230V alternating voltage from batteries and car installations with 12V direct voltage. It can also be successfully used as an emergency source of energy for devices requiring continuous power supply, such as furnaces and central heating pumps.

APPLICATION

Power supply for chargers (phones, tablets, laptops, etc.)

Office equipment (computers, printers, etc.)

Consumer electronics (TVs, tuners, etc.)

Household appliances (refrigerators, microwaves, toaster ovens, etc.)

Power tools (drills, grinders)

Pumps, compressors (water and heat pumps, air conditioners)

PROTECTIONS

Short circuit protection

Overload protection

Overheating protection

Battery discharge alarm

The feature that distinguishes sine converters from classic simple AC/DC converters is the generation of a sinusoidal alternating voltage at the output, identical to that in the power grid. This allows you to power devices equipped with electric motors and transformers, such as power tools, pumps and low-power household appliances. Simple, cheap converters actually produce a square-wave voltage, sometimes incorrectly called a 'modified sine wave'. Such voltage is not suitable for powering inductive or capacitive devices and may damage them.

TECHNICAL PARAMETERSPower: 1500W/3000W

Input voltage range: 10.5-15.5 VDC

Output voltage: 230V

Voltage range output: 225-235VAC

Frequency: 50Hz/60Hz±0.5

Instantaneous power: 3000W

Power under continuous load: 1500W

Efficiency at full load: 92%

Current consumed without load: 300mA

Overload protection: at 120% load, the device automatically turns off, sound signal, red diode

Short circuit protection: (automatic shutdown)

Protection against too low voltage

Dimensions: 342x201x94mm

Weight: 3962 kg

USB SOCKET
