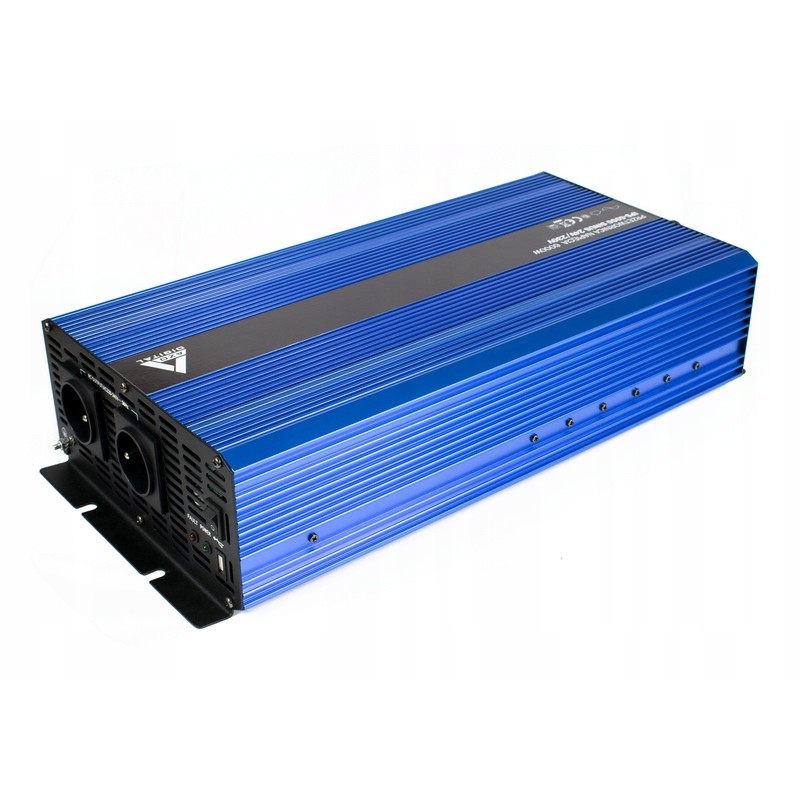

Voltage converter 24v 230v 6000w pure sine

SINUS 24V/230V 6000W voltage converter The IPS SINUS series of voltage converters is designed to power electrical and electronic devices requiring 230V alternating voltage from batteries and car installations with 24V direct voltage.

It is most often used in places where there is no possibility of direct connection to the power grid. One of the functions of the converter is to use it as an emergency source of energy for devices requiring continuous power supply, such as furnaces, central heating pumps, and maintenance systems. A characteristic feature of SINUS converters that distinguishes them from classic simple DC/AC converters is the generation of an alternating voltage at the output. sinusoidal, identical to that in the power grid. This allows you to power devices equipped with electric motors and transformers, such as power tools, pumps and low-power household appliances. Simple, cheap converters actually produce a square-wave voltage, sometimes incorrectly called a 'modified sine wave'. Such voltage is not suitable for powering inductive or capacitive devices and may damage them.

Features of the SINUS IPS converter

Aluminum housing

Intelligent cooling

Too low battery alarm

Work with induction motors and central heating pumps

USB socket

Protection system

Against power polarity reversal

Protection against too deep battery discharge

Overload protection

Output short-circuit protection

Thermal protection - protects the converter against overheating

Ideal for powering

Refrigerators, freezers, microwaves , engines, pumps, compressors and fans

Drills, grinders, lawn mowers, vacuum cleaners

Incandescent lighting, LED and fluorescent lamps

Laptop and USB power supplies, computers and monitors, TV

Printers and cash registers

PARAMETERS:

Input voltage [VDC]: 22÷30 VDC

Output voltage [VAC]: 230 VAC

Maximum power: 6000 W

Continuous power: 3000 W

Output voltage waveform: Sinusoidal

Soft START: YES

Overload protection : YES

Short circuit protection: YES

Thermal protection: YES

Supply overvoltage protection: 30 VDC

Battery discharge warning: YES

Operating temperature: 0°C ~ +40°C

Efficiency: >.92 %

Cooling: Active

Power connector: M8 screw connector

230V output socket: 2 x E (with pin)

USB socket: 5V / 500mA

Housing: Aluminum

Protection level (IP): IP21

Dimensions L x W x Height [mm]: 490x230x108

Weight [kg]: 7.64
