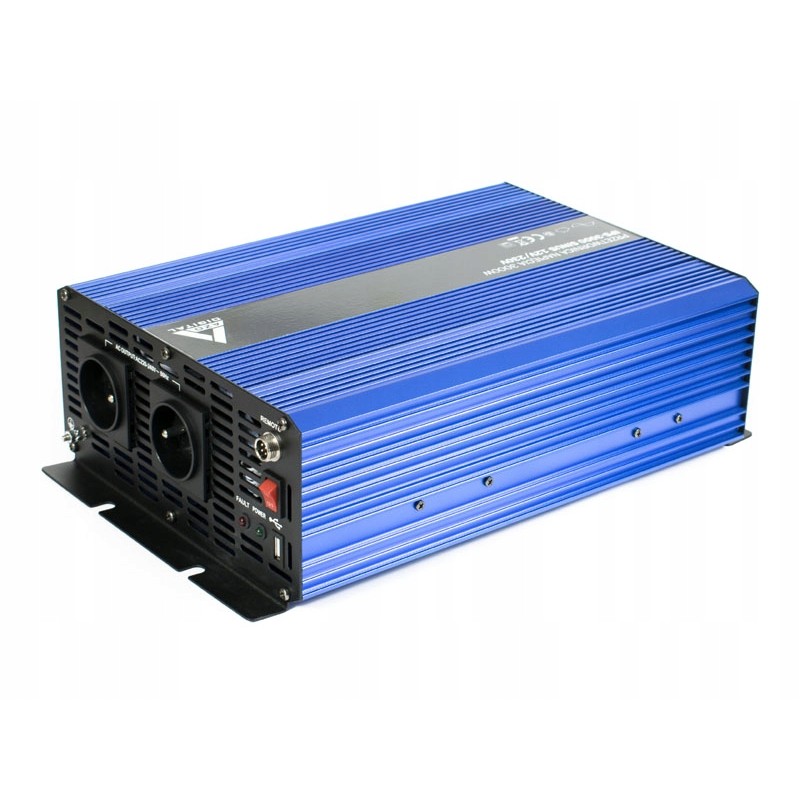

Voltage converter 12v 230v 3000w sine for camper

SINUS voltage converter 12V/230V 1500W/3000WThe IPS SINUS series of voltage converters is designed to power electrical and electronic devices requiring 230V alternating voltage from batteries and car installations with 12V or 24V direct voltage.

It is most often used in places where there is no possibility of direct connection to the power grid. One of the functions of the converter is to use it as an emergency energy source for devices requiring continuous power supply, such as furnaces, central heating pumps, and support systems.

A characteristic feature of SINUS converters that distinguishes them from classic simple DC/AC converters is the generation of a sinusoidal alternating voltage at the output, identical to that in the power grid. This allows you to power devices equipped with electric motors and transformers, such as power tools, pumps and low-power household appliances. Simple, cheap converters actually produce a square-wave voltage, sometimes incorrectly called a 'modified sine wave'. Such voltage is not suitable for powering inductive or capacitive devices and may damage them.

Features of the SINUS IPS converter

Aluminum housing

Intelligent cooling

Low battery alarm

Work with induction motors, central heating pumps USB socket

Security system

Before changing the polarity of the power supply

Protection against too deep battery discharge

Overload protection

Output short-circuit protection

Thermal protection - protects the converter against overheating

Perfect for power supply Refrigerators, freezers, microwave ovens, engines, pumps, compressors and fans.

Drills, grinders, lawn mowers, vacuum cleaners

Incandescent lighting, LED and fluorescent lamps

Laptop and USB power supplies, computers and monitors, TV

Printers and cash registers

PARAMETERS:

Input voltage [VDC]: 11÷15 VDC

Output voltage [VAC]: 230 VAC

Maximum power: 3000 VA

Continuous power: 1500 VA

Output voltage waveform: Sinusoidal

Soft START: YES

Overload protection: YES

Short circuit protection: YES

Thermal protection: YES

Supply overvoltage protection: 15 VDC

Battery discharge warning: YES

Operating temperature: 0°C ~ +40°C

Efficiency: >.92%

Cooling: Active

Power connector: M8 screw connector

230V output socket: 2 x E (with pin)

USB socket: 5V / 500mA

Housing: Aluminum

Protection level ( IP): IP21

Dimensions L x W x Height [mm]: 370x230x108

Weight [kg]: 5.2

Protection class: IP20

Continuous power of the converter 1500W
