CBE PC380 Italy camper power control panel

Motorhome Power Control Panel CBE PC380 Italy Electronics Control Kit for Motorhome, Campervan and Caravan PC380 The top of the line CBE PC380 is a universal 12V installation kit built around the PC380 Digital Control Panel and includes all the main components required to get the electrical system in your RV and camper.

The PC380 microprocessor-controlled control panel provides a range of functions for controlling and monitoring the electrical installation and is equipped with a sleek, modern 12-color 4.8-inch negative LCD display.

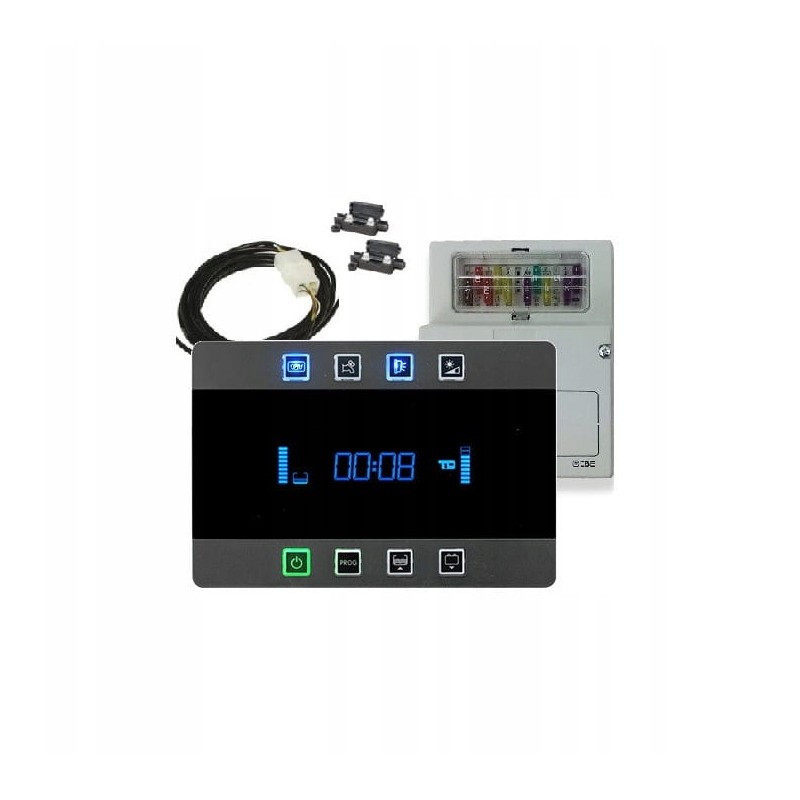

CBE PC380 kit includes the following items:

PC380 digital control panel with 2.9' color LCD display

Distribution box with fuses DS300 12V

A pair of screw probes for detecting the level in a sewage tank

Water probe cable set

Cable set for control panel

Set of cables for internal and external temperature sensor

Fuse socket 50A

Wire harnesses, connector blocks and terminals

System functions:

Voltmeter for checking the condition of the starter and recreation battery

Indoor and outdoor temperature display

Digital clock with alarm

Indication of connection to the 240V network

Level indicator in the fresh water tank

Fresh water tank empty indicator

Sewage tank full indicator

Audible fresh water tank full indicator

Button sounds

Indoor and outdoor temperature indicators

Engine on indicator

Split loading indicator

Starter battery excessive discharge alarm

Recreational battery over-discharge alarm

240V mains power indicator

Awning lighting on/off switch

Interior lighting and heating on/off switch

Water pump on/off switch

Main power on/off switch

Protection against excessive battery discharge

Twilight function to dim the display

Control panel dimensions 190 x 130 mm

Due to the different heights of clean water tanks, the water probe is not included. We offer 220mm, 300mm and 400mm. We also offer the opportunity to purchase compatible CBE 16A CB516-3

chargers

Technical specifications:

PC380 control panel with digital display:

Rated voltage: 12V DC

Panel color: black

Screen specifications: 4.8''-inch backlit color LCD display Dimensions: 190 (width) x 1300 (height) mm Type of mounting: built-in to the panel

DS300 fuse switchboard:

Rated voltage: 12V DC

Number of fuse locations: 11

Fuse values: 3 - 30 A (depending on the circuit)

Battery low voltage cut-off: 10V DC

Battery reconnection voltage (after disconnection): 12 V DC

Bypass trickle charging of the starter battery current: max. 2A

Split charging relay rating: 70 A

Battery and ground pin size: M6

Total dimensions: 140 (W) x 180 (H) x 85 (D) mm

Mounting type: Surface mounting (mounting feet included)

Brand: CBE Made in Italy

Producer: CBE
