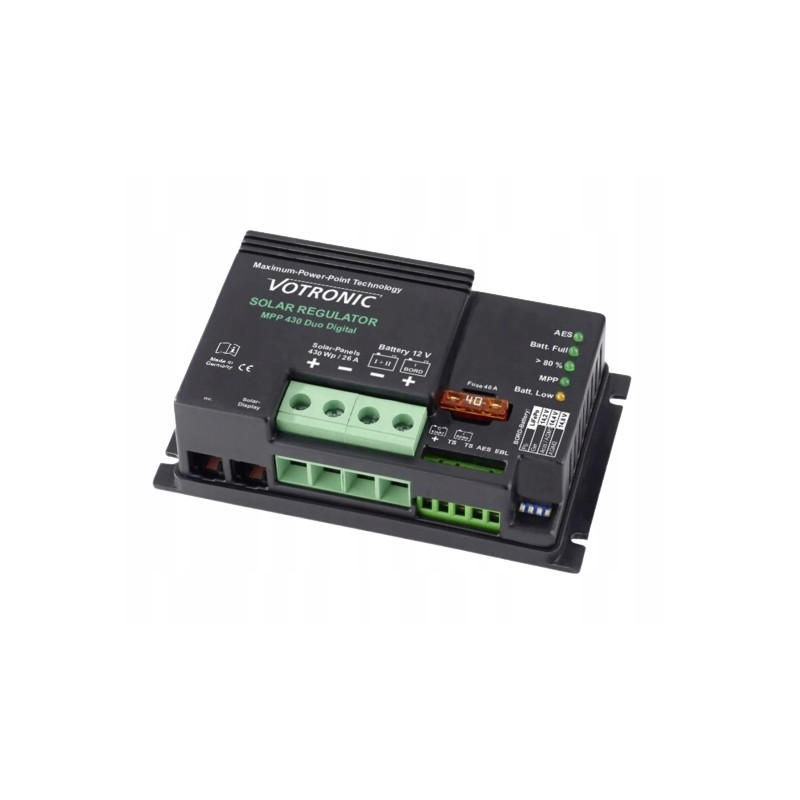

German MPP430 duo dig MPPT charging controller

The German MPP Votronic 40A charge controller is a device created specifically for effective and safe charging of batteries in photovoltaic systems. This device uses MPP (Maximum Power Point) technology, which allows you to achieve maximum efficiency from photovoltaic panels. Here are the main features of this regulator:

The Votronic 40A MPP 430 DUO DIG charge regulator is not only reliable, but also precise. Thanks to MPPT technology, it automatically adjusts the charging voltage to current weather conditions and sunlight intensity, which guarantees maximum energy gain from the panels.

This Votronic photovoltaic regulator is compatible with various types of batteries, including gel, lead-acid, lead-calcium and AGM , which makes it versatile and ideal for various applications.

Votronic DUO DIG 40A charge controller offers advanced functions and precise control over the charging process, which translates into the efficiency and durability of your photovoltaic system.

Product technical data Model: MPP430 DUO DIG

Nominal system voltage [V]: 12

Maximum input power of the module [Wp]: 430

Maximum solar module current [A]: 26

Maximum voltage of the solar module [V]: 50

Battery Charging I/II max [A]: 31.5/1.0

Charging line characteristics: IU1oU2

Works with batteries: Acid/lead-acid, gel, AGM, LiFePO4

Power consumption in sleep mode [A]: 0.004

Overload protection: YES

Reverse current protection: YES

Network suppression filter: YES

Number of charging sockets: 2

Protection against overload, overheating and short circuit: YES

Connection for temperature sensor: YES

Compensates for voltage lost on charging cables: YES

Connection for LCD-Solar-ComputerS: YES

It is possible to connect EBL: YES

Operating temperature [°C]: -20 to +45 [°C]

Dimensions [mm]: 131 x 77 x 40

Weight [g]: 260

Features*Increased MPP charging current thanks to the use of modern microprocessor technology (efficiency, 95%). Additional benefits can be achieved in colder conditions.

*Customizable charging characteristics enable different types of batteries to be optimally charged. Stable charging voltage eliminates the risk of overcharging.

*The regulator has two charging connectors: for the main on-board battery and the starter battery (protection against possible overcharging).

*Maintenance-free charging mode provides protection against the risk of overcharging, overheating and other potential problems.

*Multi-tasking operation with various receivers and protection against excessive charging, which contributes to long-term maintenance of the battery in good condition.

*The 'IU1oU2' charging characteristic guarantees a safe battery charging process.

*Automatic compensation of voltage loss on the power cables and a filter that suppresses interference from the network.

*It is possible to monitor the photovoltaic system via the electroblock.

*Additionally, there is a connector for a battery temperature sensor, which allows for better adjustment of the charging voltage to the current battery temperature.

*It is recommended to connect 'Votronic Solar Displays' for full control over the functioning of the system .
