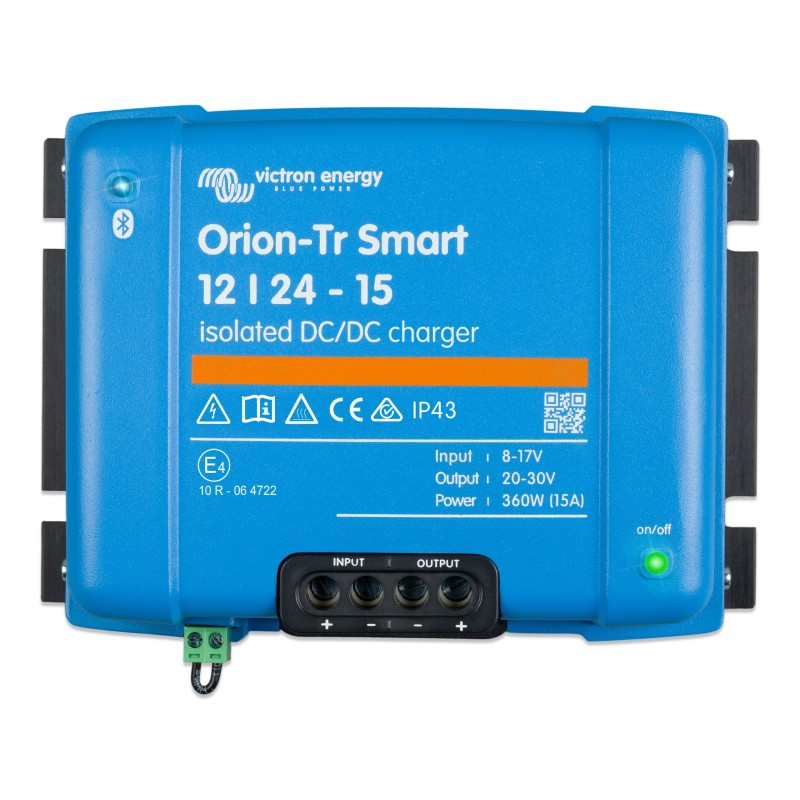

VICTRON CHARGER Orion-Tr Smart 12/24V 15A DC-DC

The Orion-Tr Smart DC-DC hotel battery charger is a professional, adaptive, 3-stage DC to DC charger with built-in Bluetooth. This means that it allows you to charge the hotel battery directly from the alternator, limiting the current and protecting the battery against too fast charging.

It is intended for use in dual battery systems in vehicles or boats, in which the main battery is charged by the alternator and starter battery. The device can be monitored and programmed via Bluetooth using the Victron Connect app, can be remotely controlled with a remote on/off switch, and is equipped with an engine detection mechanism.

Orion chargers are designed for 12/12V - 24/24V - 12/24V and 24/12V to ensure charging of the hotel battery through the battery located in the engine compartment, i.e. through the alternator. A wide range of voltages and currents allows the device to be adapted to the existing installation in the car. Management via telephone allows full configuration and adaptation of voltages. The built-in sensor allows operation with Euro 5 and Euro 6 engines. The built-in engine shutdown detection system turns off the inverter when the engine is not running. This will prevent the starter battery from discharging.

The system is protected against high temperature and if the temperature increases, the charging current will be automatically reduced.

Bluetooth Smart enabled

You can use any smartphone to monitor, change settings and update the charger when new software features become available , tablet or other

Bluetooth-enabled device.

Fully programmable

- Battery charging algorithm (configurable) or constant power output.

- Smart alternator compatibility: engine detection mechanism.

Adaptive 3-stage charging algorithm: bulk - absorption - float

• In the case of lead-acid batteries, it is important that during shallow discharges the absorption time is short to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically extended to ensure that the battery is fully charged again.

• For lithium batteries, the absorption time is fixed, defaulting to 2 hours.

• Alternatively, a constant output voltage can be selected.

Suitable for use in vehicles with intelligent alternator (with Euro 5 and Euro 6 engines)

Built-in engine shutdown detection system turns off the inverter when the engine is not running.

This prevents discharge of the starter battery (see the owner's manual for details).

Remote start/stop

Remote switch /switch or relay contact can be connected to a bipolar connector.

Alternatively, the H (right) terminal of the bipolar connector can be switched to the battery positive, or the

L (left) terminal of the bipolar connector can be switched to the negative of the battery (or, for example, the vehicle's chassis).

All models are short circuit proof and can be paralleled to increase output current

An unlimited number of units can be connected in parallel.

Heat protected

Output current will reduce at high ambient temperatures.

IP43 protection class

When mounted with screw terminals facing down.

Screw-on terminals

Installation requires no special tools.
