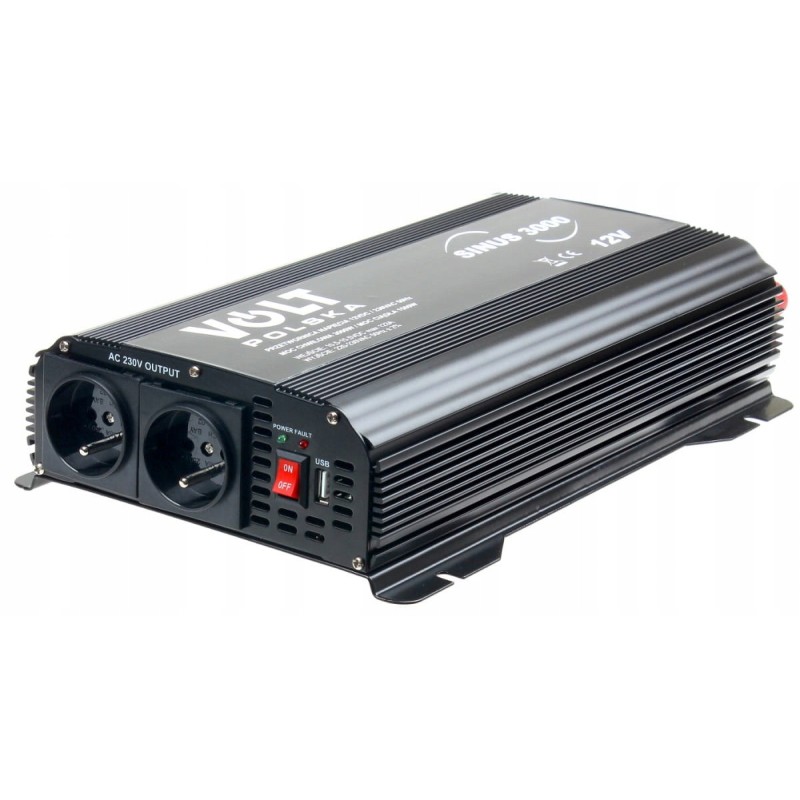

Volt converter Polish sine 3000 12v 230v 1500 3000w

CONVERTER VOLT POLSKA SINUS 3000 12V / 230V 1500/3000W VOLT+POLSKA

SINUS 3000 CONVERTER 12V / 230V

1500/3000W

MOST IMPORTANT FEATURES Continuous power up to 1500W

Instantaneous power (a few minutes): up to 1700W or 1800W (a dozen or so seconds)

Pulse power 3000W

Input voltage 12V

Output voltage: 230V±10 50Hz±0.5

Voltage waveform: Pure Sine

USB socket

APPLICATION Office equipment: computers, printers, monitors, faxes, copiers, scanners, etc.

Home appliances: low-power vacuum cleaners, fans, refrigerators, microwaves, lamps, shavers, sewing machines, etc.

Kitchen appliances: coffee machines , toasters, mixers, etc.

Halogen and sodium lamps

Home entertainment devices: TVs, video players, game consoles, audio equipment, musical instruments, satellite TV tuners and many others

PRODUCT DESCRIPTION The series of sine voltage converters is used to power electrical devices requiring 230V alternating voltage from batteries and car installations with 12V or 24V direct voltage. It is perfect for places where there is no possibility of direct connection to the power grid. It can also be successfully used as an emergency energy source for devices requiring continuous power supply, such as furnaces and central heating pumps. The feature that distinguishes sine converters from classic simple AC/DC converters is the generation of a sinusoidal alternating voltage at the output, identical to that in the power grid. This allows you to power devices equipped with electric motors and transformers, such as power tools, pumps and low-power household appliances. Simple, cheap converters actually produce a square-wave voltage, sometimes incorrectly called a 'modified sine wave'. Such voltage is not suitable for powering inductive or capacitive devices and may damage them.

In addition to a universal socket for all types of European plugs (including those with grounding pins), there is also a USB power port to which you can connect a USB cable and charge the battery of your smartphone or tablet, audio player or e-book reader.

ADDITIONAL FUNCTIONS Auto restart after overload

Auto restart after voltage drop

Auto restart after voltage increase

Automatically controlled fans

TECHNICAL SPECIFICATIONS Continuous power: up to 1500W

Instantaneous power (several seconds): up to 1800W

Pulse power: 3000W

Output voltage: 220V-240V±2%

Output voltage frequency: 50±0.5Hz

Mileage voltage: Pure sine, THD-R <,3%

USB port: 5V

Input voltage range: <,11V±0.3>,-<,15.0V±0.5>,

Rated input voltage range: 12.8V- 13.8V

Leakage current (no load): ≤1A (measured: ~0.8A at 12V)

Over-voltage protection: 15V ±0.5(shutdown)

Depleted battery alarm voltage: <,10.5±0.5V

Under-voltage protection: 9.5±0.5V

APPROXIMATE WORKING TIME OF THE DEVICE 18 Ah - 50W: 4h, 100W: 2h, 180W: 1h 10min, 270W: 45min

33 Ah - 50W: 7h 15min, 100W: 3h 45min, 180W: 2h, 270W: 1h 20min

40 Ah - 50W: 9h, 100W: 4h 30min, 180W: 2h 35min, 270W: 1h 45min

55 Ah - 50W: 12h 15min, 100W: 6h 7min, 180W: 3h 30min, 270W: 2h 20min

65 Ah - 50W: 14hrs 30min, 100W: 7hrs 15min, 180W: 4hrs 10min, 270W: 2hrs 45min

100 Ah - 50W: 22hrs 15min, 100W: 11hrs 7min, 180W: 6hrs 30min, 270W: 4hrs 20min

Rectifier function: No

UPS function: No

USB port: Yes

Input voltage: 12V

Output voltage: 230 V

Waveform: Sine
