Zenec navigation radio with n965 9 transit camper

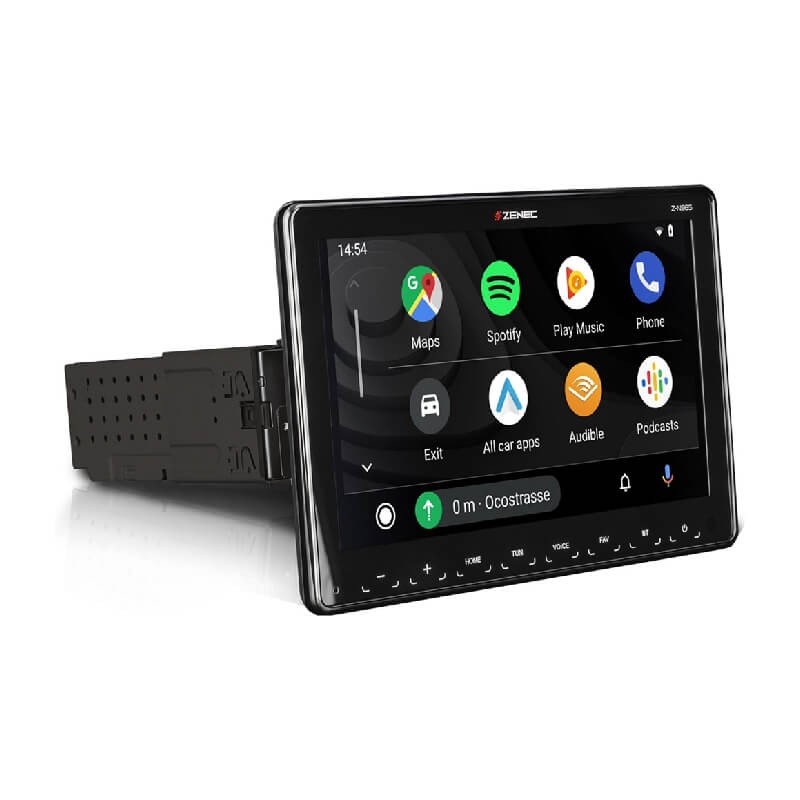

RADIO MULTIMEDIA STATION Z-N965 ZENEC Z-N965 is a top-class DAB+ infotainer for vehicles with a slot for a 1-DIN device. To optimally integrate the Z-N965 into the cockpit, the display tilt angle as well as its vertical position can be adjusted. An efficient, 22.9 cm/9' TFT touch screen with a glass surface provides a sharp, precise and brilliant image (1024 x 600 pixels).

Z-N965 makes using your smartphone in the car easy and, above all, safe. You can connect your mobile phone directly to the Infotainer via USB - the Z-N965 is Apple CarPlay and Google Android Auto certified. Making phone calls, navigating, receiving/sending messages or simply listening to music - all supported functions can be conveniently controlled via Apple Siri, Google voice assistant or the touch screen of the ZENEC Infotainer.

Z-N965 fits vehicles with a dashboard with direct 1-DIN device mounting or a vehicle-specific 1-DIN mounting kit. Note: Due to the 9-inch display, please check that safety-sensitive vehicle dashboard components are not obscured by the Z-N965 display front and interfering with their function, e.g. hazard warning lights, airbag modules or other cockpit control panels.

BLUETOOTH: FSC Bluetooth 4.2 module with hands-free function

Import 1000 contacts from the phone book with 3 phone numbers each

Phone book in memory with instant access to synchronized contacts

Quick dial function for favorite contacts

Function of searching for contacts in the phone book using the keyboard by name and surname

Displaying iD3 tags in A2DP mode (artist, title, album)

Internal Bluetooth microphone, additional input for external microphone

MULTIMEDIA AND AUDIO: DAB+ receiver with dual tuner for DAB+ and TPEG

FM RDS radio with 18 preset stations and DSP noise reduction

Multi-zone function

USB(1) 2.0 port on the rear panel for CarPlay and Android Auto

USB(2) 2.0 port on the rear panel for playing A/V*4 files from a USB storage device

5-CH delay correction with audio DSP (0 - 10 mS delay)

10-band graphic equalizer with 7 EQ presets

Made for iPod/iPhone

High and low pass filter for front/rear/sub with 12 dB/oct slope

1 x HDMI input for accessories and compatible mobile devices

24-bit D/A converter

CONNECTIONS: 4.2 Cinch preamplifier output (3V)

3 x Cinch input for camera video signals (CVBS) with switchable power supply and microphone input (Cam1)

1 x DIN VHF

antenna input 1 x SMB DAB antenna input with 12V phantom power

1 x USB(1) 2.0 port with charging current up to ~1000 mA for Apple iOS and Android devices

1 x USB(2) 2.0 port for playing A/V files (and charging ~1000 mA battery)

1 x Cinch A/V input for 2-channel audio and video (CVBS)

1 x A/V cinch output for 2-channel audio and video (CVBS) (zone M)

1 x input for external Bluetooth microphone

1 x input for connecting the steering wheel button interface with the possibility of learning

1 x IR-In input for external CAN/SWC

interface HDMI input

FEATURES: OSD menu in 15 different EU languages

Dual DAB+ tuner with DAB<,>,FM and DAB<,>,DAB service tracking, MOT slideshow, DLS text and dynamic station list

FM RDS radio with 18 preset stations

Bluetooth 4.2 hands-free module with A2DP music streaming function

Control of three camera systems with automatic switching, customizable guides

SP-REM remote control application for controlling sound sources from a smartphone (iOS/Android)

Multi-color RGB

button illumination 2 x IR remote control included with Maxi-Remote

4 x 50 W amplifier

PRODUCT PARAMETERS: Brand: ZENEC

Symbol: 07220022

Compatibility: Ford Transit from 2019

Display dimensions: 15.5 x 23 cm
