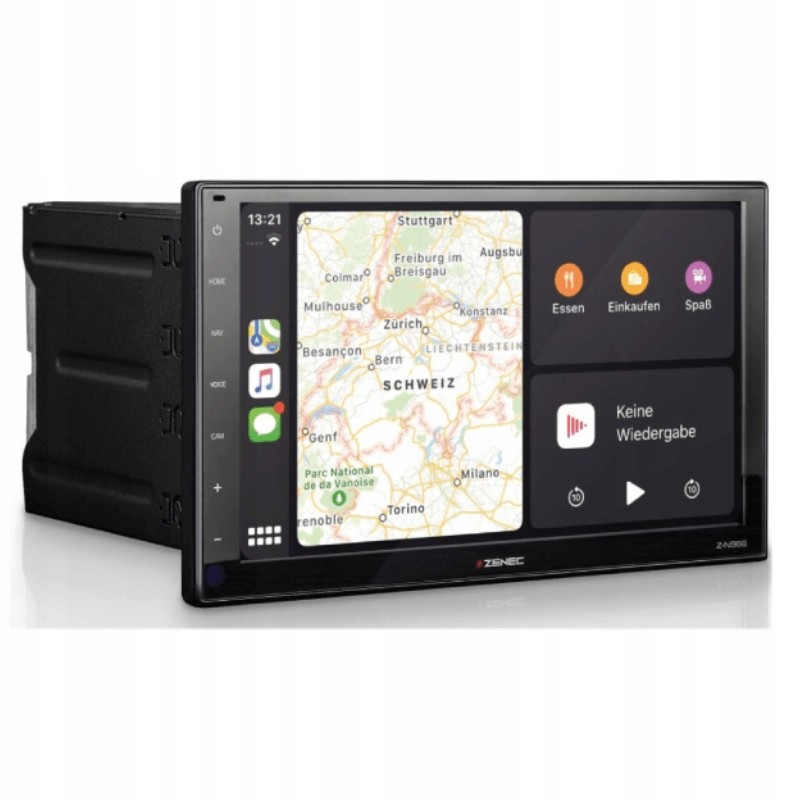

Zenec radio with navigation n966 9 2 din camper

RADIO MULTIMEDIA STATION Z-N966 Z-N966 from the ZENEC PRIME series is the best-equipped DAB+ multimedia station for vehicles with a 2-DIN input. The 22.9 cm/9' TFT touch screen with a glass surface displays HD images (1280 x 720 pixels), which allows for a clear, sharp and perfect image. Z-N966 enables easy and particularly safe use of your smartphone in the car. You can connect your phone directly to the radio via USB(1) or Bluetooth. The Z-N966 multimedia station is Apple CarPlay and Google Android Auto TM certified. Phone calls, navigation, receiving/sending messages or listening to music - all these supported functions can be conveniently controlled using Apple Siri, Google language assistant or the touch screen of the ZENEC infotainer. The Z-N966 has a dual DAB+ tuner that offers the full range of digital broadcast standard programming, including various features such as dynamic station list, MOT slideshow, DLS text and DAB FM service. The modern Bluetooth 4.1 module offers convenient hands-free functions with optimized operation and the highest quality.

BLUETOOTH: Bluetooth 4.1 module with hands-free function

Import 1000 phone book contacts

Quick dial function for favorite contacts

Function of searching for contacts in the phone book by entering from the keyboard by name and surname

Source mode for wirelessly streaming music to external Bluetooth speakers

Displaying iD3 tags in A2DP mode (artist, title, album)

Internal Bluetooth microphone, additional input for an external microphone MULTIMEDIA AND AUDIO: DAB+ receiver with dual tuner

FM RDS radio with 18 station memory and DSP noise reduction

Multi-zone function

USB(1) 2.0 port on the back of the device for CarPlay and Android Auto

USB(2) 2.0 port on the back of the device for playing A/V 3 files from a USB storage device

5-channel time alignment with audio DSP (delay 0 - 10 ms)

Graphic 10-band equalizer with 7 EQ presets

High-pass and low-pass filter for front/rear/subwoofer with 12 dB/oct. steepness of the edge

High and low pass filter for front/rear/sub with 12 dB/oct slope

1 x HDMI input for accessories and compatible mobile devices

24-bit D/A converter

CONNECTIONS: Preamplifier output 4.2 RCA (3V)

3 x Cinch input for camera video signals (CVBS) with switchable power supply and microphone input (Cam1)

1 x DIN VHF

antenna input 1 x SMB DAB antenna input with 12V phantom power

1 x USB(1) 2.0 port with charging current up to ~1000 mA for Apple iOS and Android devices

1 x USB(2) 2.0 port for playing A/V files (and charging ~1000 mA battery)

1 x A/V RCA input for 2-channel audio and video (CVBS)

1 x RCA A/V M-Zone output for 2-channel audio and video (CVBS)

1 x input for external Bluetooth microphone

1 x input for connecting the steering wheel button interface with learning function

1 x IR-In input for external CAN/SWC

interface 1x HDMI input

CHARACTERISTIC FEATURES: 9-inch HD Infotainer display, expandable with navigation function

Touch screen, LCD-TFT HD 9'/22.9 cm 16:9 (1280x720p) with glass screen

OSD menu in 15 different EU languages

Dual DAB+ tuner with dynamic station list, DAB<,>,FM and DAB<,>,DAB service tracking, MOT slideshow and DLS text

FM RDS radio with 18 station memory

Connection to Google Android / Apple Car Play

Bluetooth 4.1 hands-free module with A2DP music streaming

Control up to three camera systems with automatic switching

SP-REM remote control application for controlling audio functions via smartphone (iOS/Android)

Multi-color RGB key backlight (amber by default)

2 x IR remote control including maxi remote control

Power amplifier 4x50W

PRODUCT PARAMETERS: 9-inch HD Infotainer display, expandable with navigation function

Touch screen, LCD-TFT HD 9'/22.9 cm 16:9 (1280x720p) with glass screen

OSD menu in 15 different EU languages

Dual DAB+ tuner with dynamic station list, DAB<,>,FM and DAB<,>,DAB service tracking, MOT slideshow and DLS text

FM RDS radio with 18 station memory

Connection to Google Android / Apple Car Play

Bluetooth 4.1 hands-free module with A2DP music streaming

Control up to three camera systems with automatic switching

SP-REM remote control application for controlling audio functions via smartphone (iOS/Android)

Multi-color RGB key backlight (amber by default)

2 x IR remote control including maxi remote control

Power amplifier 4x50W
