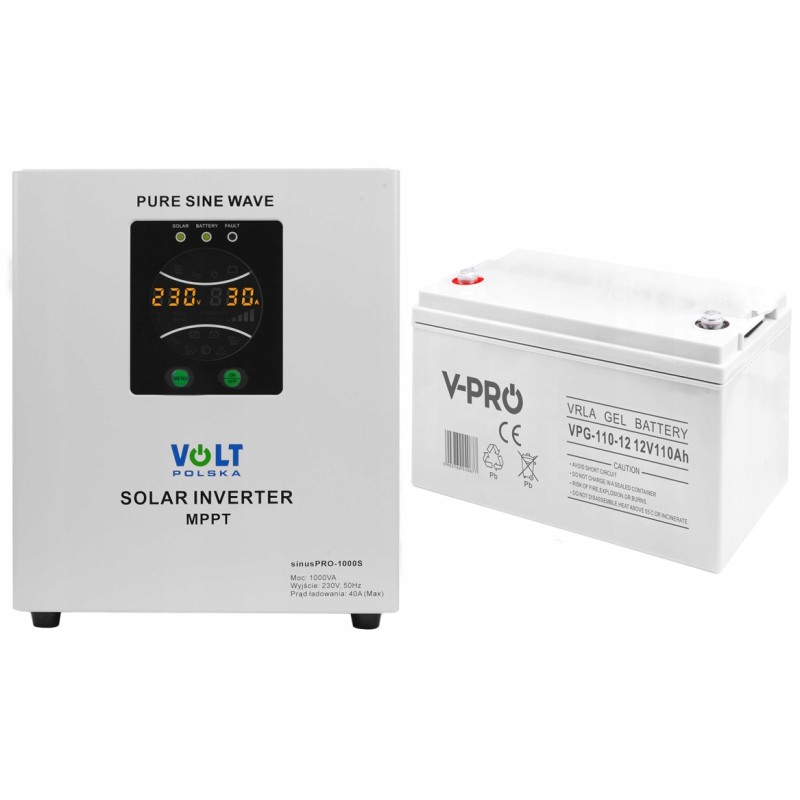

UPS sine inverter pro 1000va 700w 12v mppt 40a constant phase gel 12v 110ah

UPS INVERTER SINUS PRO 1000VA 700W 12V MPPT 40A FIXED PHASE + GEL 12V 110AH Specification: Total power (instantaneous): 1000VA

Constant power: 700W

Battery voltage: 12VDC

Input voltage range (photovoltaic panel): 15VDC-50VDC

Max charging current: 40A MPPT

Input voltage range (mains supply): 140VAC-275VAC

Output voltage range (mains supply): 190VAC-245VAC

Charging current from the mains: 20A

Output voltage range (converter): 230V+ -3%

Operating temperature: 0-40°C

Weight: 8.5 kg

Dimensions: 312 x 310 x 167 mm

Product code: 20862

Set code: 22684

Product description sinusPRO 1000S emergency power supply 12V is used to power electrical devices requiring 230V alternating voltage from 12V direct voltage batteries. The built-in solar regulator allows you to additionally use solar energy to charge the batteries and power the connected load. No forms of fuses should be used at the output of inverters that convert voltage, including surge protection strips, i.e. popular protected distributors. The only safe form of securing the system is to install a fuse on the battery side, and the only permitted form of separation from the mains sockets is to use a basic distributor without protections, diodes or switches.

What distinguishes the sinusPRO 1000S 12V emergency power supply from other devices?

Pure SINUS emergency power supply produces a "sinusoidal" voltage at the output, the same as in the power grid. Thanks to this, it can power inductive devices (including power tools, air compressors, air conditioners, refrigerators, freezers, etc.)

Why is it worth using the SinusPRO 1000S 12V power supply? Construction based on an efficient toroidal transformer

Wide input frequency range , automatic detection 50/60Hz

Full range of protections and alarms: overload, short circuit, over- and under-voltage protection, temperature

LCD display informing about the current operating status of the device, including: input and output voltage, battery voltage and charging

The most important features: Automatic mains voltage stabilizer AVR

Main charger for charging the connected battery

Pure SINUS converter based on a toroidal transformer

Possibility to connect solar panels

Built-in toroidal transformer compensates for different reactive power of receivers (capacitive, inductive and resistive loads can be combined), responds very flexibly to overloads, among others starting pumps, compressors, engines

The converter can operate in UPS mode, which ensures virtually uninterrupted and trouble-free operation of e.g. blowers, feeders, pumps, central heating installations, automation, etc.

LCD display with the most important parameters

Solid and compact housing

Volt GEL VPRO Premium gel battery 12V 110Ah Nominal voltage: 12V

Nominal capacity: 110Ah

Total height: 218 mm

Internal resistance (at 25°C): 3.5 mΩ

Height: 213 mm

Width : 173 mm

Length: 331 mm

Weight: 28.6 kg

Recommended operating temperature: 25°C±3°C

Maximum charging current: 30A

Maximum discharge current: 800A

Designed service life (25 °C): 12 years

Product code: 21704

The GEL (gel) series battery is intended, among others, for: for powering photovoltaic systems or vehicles where the battery is exposed to shocks and charging from impulse sources, e.g. solar controllers. Thanks to its structure based on gelled electrolyte, the GEL (gel) battery is ideal for cyclic operation, even with deep discharges. It achieves several times more discharge cycles compared to batteries made using AGM technology. The designed service life is up to 12 years with buffer operation at a temperature of 25 °C

The most important features: A GEL (gel) battery has a similar structure to an AGM battery, except that in a gel battery, the electrolyte is stored in the form of a gelled paste. Thanks to this design, it has better resistance to electrolyte leaks than an AGM battery. Automatic sealing system. When the pressure inside the accumulator becomes too high, the valves open, causing the resulting gas to be safely discharged outside the housing and preventing damage. This situation occurs when the battery is overcharged

Battery casing made of ABS material, cells made of copper

What devices are powered by the GEL battery? Emergency power systems (UPS power supplies, converters)

Telecommunications systems

Closed-circuit television systems

Systems alarm and fire protection

Spare and emergency lighting systems

Wind and solar power plants

Power supply for power tools

Power supply for medical equipment

Electric vehicles (motorcycles, quads, scooters)

Mobile vehicles (wheelchairs, golf carts, forklifts, industrial cars)

Water vehicles (motorboats, boats)

Garden vehicles (lawnmowers, etc.)

Caravans

Why is it worth using a GEL battery? Very long life (up to 12 years) and low self-discharge

Possibility of operation in a buffer system and cyclical

Maintenance-free - does not require refilling or replacing the electrolyte

Safe to use (no electrolyte leakage, pressure valves)

Technical parameters of the battery: Capacity (at 25°C) 10h (10.8V): 110Ah

Capacity (at 25°C) 5h (10.5V): 80Ah

Capacity (at 25°C) 3h (10.5V): 73.5Ah

Capacity (at 25°C) 1h (10.5V): 55Ah

Capacity: (40°C): 102%

Capacity (25°C): 100%

Capacity (0°C): 85%

Capacity (-15°C): 65%

Self-discharge (25° C) 3 months: 91% of nominal capacity

Self-discharge (25°C) 6 months: 82% of nominal capacity

Self-discharge (25°C) 12 months: 64% of nominal capacity

Operating temperature range - discharge: -15°C to 50 °C

Operating temperature range - charging: -10°C to 50°C

Operating temperature range - storage: -20°C to 50°C

Buffer charging voltage (25°C): 13.5VDC-13 .8VDC

Cyclic charging voltage (25°C): 14.4VDC-14.7VDC

Included Volt Sinus Pro 1000 S 1000VA/700W power supply

Volt GEL VPRO Premium gel battery 12V 110Ah

User manual in Polish
