Strong starter alternator installation Ursus C360

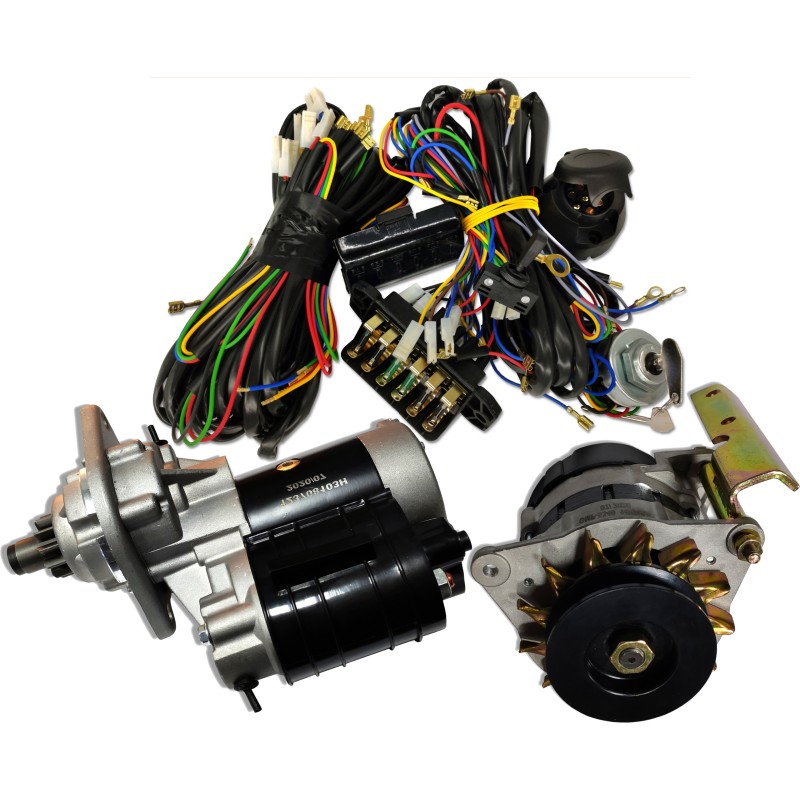

PREMIUM set - REINFORCED Starter + Alternator + Installation for URSUS C-360 tractors SKRAW-MET CODE: [7365] This is a set dedicated to URSUS C-360 agricultural machines.

The set includes: Reinforced starter with C-330 C-360 reducer ZETOR URSUS 12V 2.8kW 11z [2563]

Alternator Ursus C-360 14v 50A [2514]

Electrical installation Ursus C-360 [2508]

Complete set ready for operation. The elements used in the set guarantee long and reliable operation. ENHANCED STARTER FOR URSUS ZETOR 12V 2.8kW (11 teeth) MACHINES. ENHANCED VERSION. It is characterized by higher power and at the same time lower power consumption and an additional cover for the machine (electromagnet).

High-speed starter of the 2nd generation with a reducer that facilitates starting the engine at low temperatures.

With a built-in planetary gear. (reducer) on bearings - thanks to lower battery power consumption - it will start at ANY TEMPERATURE.

Dynamoelectric construction made with particular care - only from high-quality materials, thanks to modern technology and quality control we guarantee a durable and reliable starter.

It is a complete starter dedicated to agricultural machines ZETOR, URSUS C-330, C-360, C-330M, C-335 and derivatives. It includes:

head and cap,

brushes

stator (winding)

rotor

machine with forks

machine cover

bendix

gear (reducer)

set of bearings

NON-REGENERATED STARTER - BRAND NEW Technical specifications: Power: 2.8 kW

Rated voltage: 12 V

Number of teeth on the bendix: 11 z

Rated rotational speed at 20.5 Nm: 1500 rpm

Current consumption during idle operation: 160 A

Current consumption during full overload: 720 A

Hole spacing: 127x90x90 mm

Holes: 10.5 mm

For proper operation - do not connect a voltage higher than 16.5 V, and the operating time cannot be longer than 3 × 20 seconds. The preventive interval between starting the starter cannot be shorter than 30 seconds - otherwise it may be at risk of overheating.ALTERNATOR C-360 14V 50AAThe alternator is a source of electrical energy intended to work in parallel with the battery of the electrical installation of agricultural vehicles/machines. It is used to charge the battery.

It is a complete alternator dedicated to URSUS C-355, C-360, C-4011 agricultural machines. It includes:

housing,

pulley with a fan,

stator (winding)

rotor

voltage regulator,

brushes

plastic cover

set of bearings

set of elements to be attached with a sleeve.

​

Technical specifications: Spacing from left (lower) ear to right (lower): 140 mm

Spacing from left (lower) ear to upper ear: 150 mm

Spacing from right (lower) ear to upper ear: 150 mm

Length of ear sleeve: 106 mm

Length of the mounting screw attached to the sleeve: 200 mm

Rated voltage: 14 V

Rated current: 50 A

Nominal power: 700 W

Rated rotational speed: 2500 rpm

Maximum rotational speed: 6000 rpm

​

Wheel belt: single

Proper operation of the alternator is expected at ambient temperatures from -40°C to +45°C and humidity of 90%.

​

Alternator installation: Note! Before installing the alternator, disconnect the battery in the system. When installing the alternator, you should:

Remove any preservatives from the alternator using rags moistened with gasoline and dry,

Install the alternator on the engine bracket without completely tightening the bolts securing it to the block Install the drive belt on the alternator pulley and adjust its tension Place the alternator in the optimal position and tighten the mounting bolts Connect the wires to the alternator in accordance with the vehicle electrical installation diagram Connect the battery terminals and start the vehicle.

The place where the power cable should be connected is marked in red, the output to the control lamp is marked in blue. Note! Poor belt tension leads to reduced power delivered by the alternator and to undercharging of the battery. Excessive belt tension leads to significant overheating of the alternator bearings and their premature failure.

Attention! Installation of the belt on the alternator pulley should be done without using tools with sharp edges.

Set of electrical installation for URSUS C-360. POLISH product - high quality! Dedicated installation for URSUS C-360 agricultural tractors.

Can be used in agriculture, horticulture, forestry, construction and broadly understood industry.

All elements are made only of durable, high-quality plastics.

Installation adapted to the alternator available on our other auctions. The electrical installation is made of high-quality cables. The set includes :set of wires

ignition switch with key

fuse box

turn signal switch

All components in the set (i.e. ignition switch or switch) are already connected to the electric wires. Note! The installation does not contain fuses!
