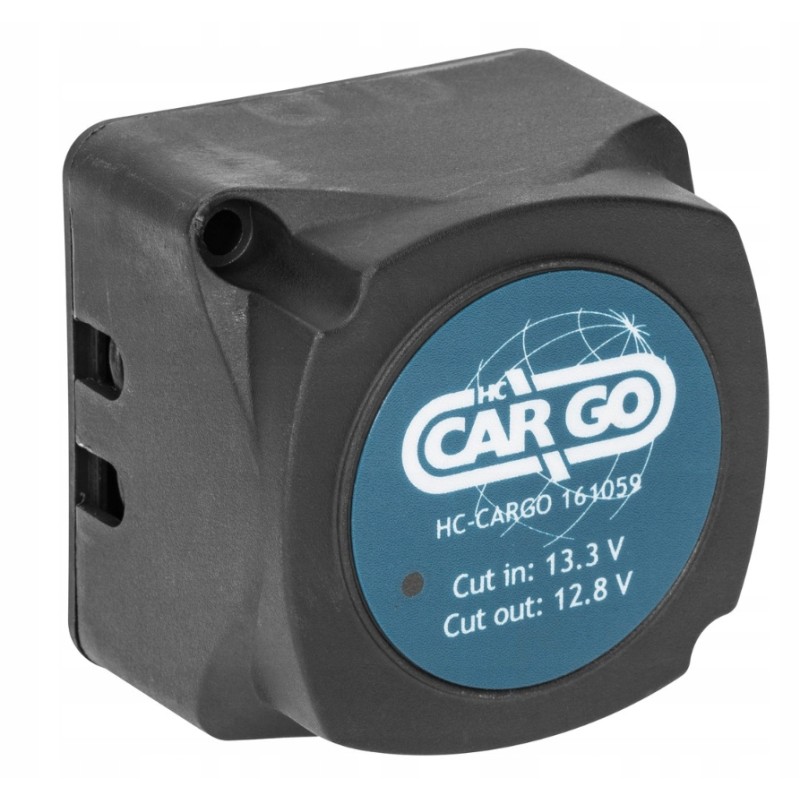

Battery separator for campers 12v 140a

Universal 12V battery isolator The battery isolator will allow you to connect and charge (from the alternator) an additional battery in a car, camper, motorhome, trailer or watercraft

Information about the manufacturer:

CARGO is a world-renowned brand of electrical and electromechanical parts, manufactured under the supervision of BOSCH, a renowned company from the highest quality owner of the CARGO brand.

The isolator, battery separator is used in:

the power supply system of caravans, campers,

powering all devices in the car from an additional battery: audio equipment, tourist refrigerators, winches in off-road vehicles, CB radios, etc.

isolating batteries in other systems with two batteries

The device is designed to charge the additional battery while the car engine is running and prevent the main battery from discharging when standing still. The device monitors the main battery voltage - if it detects an increase above 13.3V, which only happens when the alternator is running, it will short its contacts, causing current to flow to the additional battery. At the same time, a light will come on informing the user about this. After stopping the engine, the system will open its contacts to prevent the main battery from discharging.

Technical data: Model: 161059

Operating voltage: 12V

Number of batteries: 2

Max. current A: 160A/5 MIN

Current/continuous current A: 140A

Battery type: lead-acid: automotive, gel, AGM, traction

Dimensions (height x width x length): 67 x 67 x 50 [mm]

Microprocessor-controlled relay. It opens to charge the auxiliary battery when the charger voltage reaches 13.3V and closes at 12.8V.
