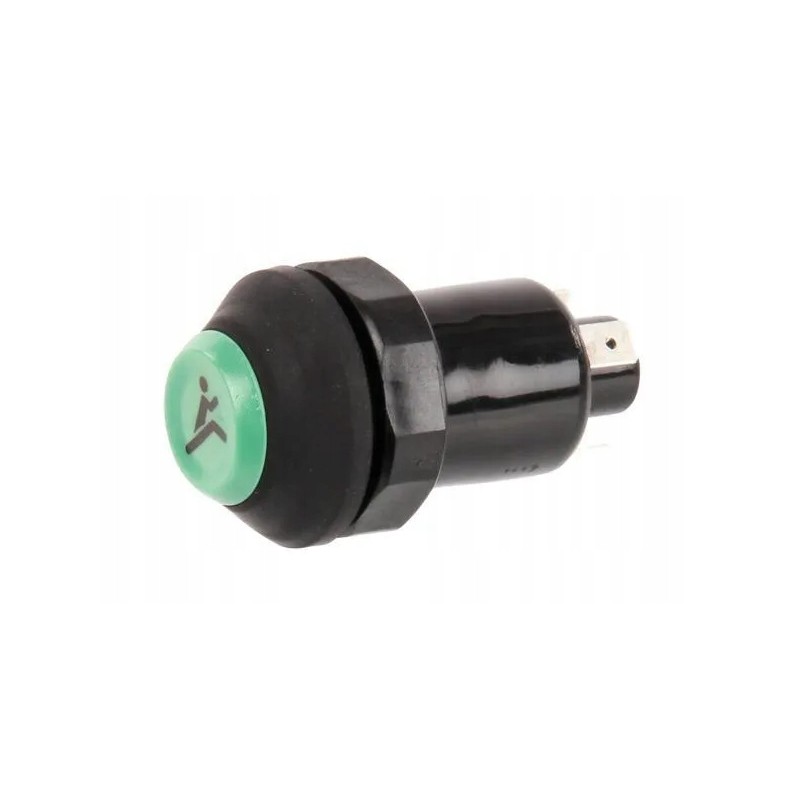

Quick button switch, round, green

Push button switch, Quick, round, green

Part number: K. 11130410PN

EAN:

Unit: Art

Features:

Voltage (nominal): 12/24 V

Operating temperature -30 to +70 C

Possible load: minimum 10 mA, maximum 15A

Maximum current of a pair of contacts: 25A

Maximum switching current: 50A

Service life 500,000 operations

Plug-in connector 6.3x8.0 (E-CU, 5 µm)

Dust and splash resistant

Technical information: IP67 side switch

Feature: Fast

Button color: Green

Color: green

Information: With detent

The product fits machines:

Landini Series 500 16000, 16000, 16000, 16500, 16500, 16500, 19500, 19500, 19500

Series Large Imported 1 16550, 16550, 16550, 17500, 17500, 17500, 19000, 19000, 19000

Massey Ferguson Series 2620 - 2720 2620, 2720 2620, 2720 2620, 2720 2640, 2720 2640, 2720 2640, 2720 2680, 2720 2680, 2720 2680, 2720 2720, 2 720 2720, 2720 2720

Series 2625 - 2725 2625, 2725 2625, 2725 2625, 2725 2645, 2725 2645, 2725 2645, 2725 2685, 2725 2685, 2725 2685, 2725 2725, 2725 2725, 2725 2725

Series 3000 3050, 3050, 3050, 3060, 3060, 3060, 3065, 3065, 3065, 3070, 3070, 3070, 3075, 3075, 3075, 3080, 3080, 3080, 3085, 3 085, 3085, 3090, 3090, 3090, 3095, 3095, 3095

Series 3100 3115, 3115, 3115, 3120, 3120, 3120, 3125, 3125, 3125

Series 3600 3610, 3610, 3615, 3615, 3630, 3630, 3635, 3635, 3645, 3645, 3650, 3655, 3670, 3680, 3690
