Kubota L3408 NGK Y716RS glow plug

Traktor_com_pl offers: Kubota L3408 NGK Y716RS 4FARMER glow plug

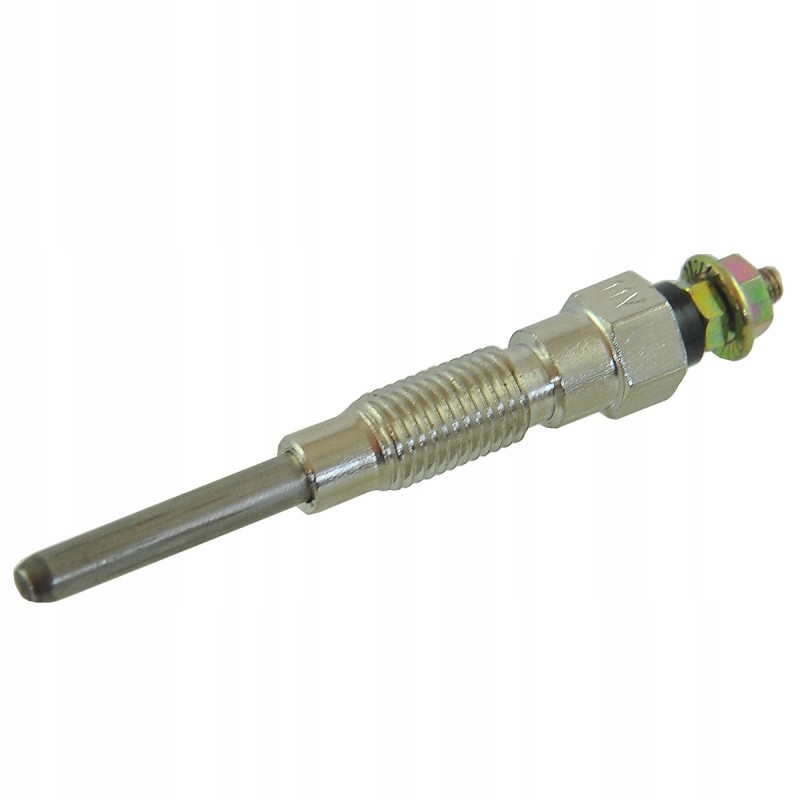

Glow plug with a total length of 85 mm and a filament length of 29 mm with an M10x1.25 thread for Kubota tractors of the Kubota L3408 series and others.

The glow plugs are mounted in the engine block in such a way that the heating tip is located in the intake manifold chamber. The rapid increase in the temperature of the spark plug tip is caused by the current that flows through the spark plugs when the ignition key is turned to the spark plug heating position. The rapid increase in the temperature of the spark plug tip heats the air, and the heated air sucked further into the engine facilitates ignition and starting the engine.

Condition: New

Production: Replacement

Parts: Electrics

Engine model: Kubota D1403

Total length (mm): 85

Voltage (V): 11

Filament length (mm): 29

Thread length(s) (mm): 10 / 15

Wrench size: 12

Thread: M10 x 1.25, M4

Tractor models: Kubota L3408

Original part number (OEM): 19077-65510, NGK Y716RS

Part number: 6-26-103-02

Dimensions:

current voltage: 11V,

total length: 85 mm,

filament length: 29 mm,

thread length: 10 / 15 mm.

thread 1: M10 x 1.25,

thread 2: M4,

key size: 12,

original part numbers: NGK Y716RS, 19077-65510,

part numbers: 6-26-103-02.

Tractor models :

Kubota :

Kubota L3408.

Engine models :

Kubota :

Kubota D1403.

A malfunctioning glow plug is a common cause that prevents the engine from starting and grounding the machine. The first signs of malfunctioning glow plugs are increased smoke coming from the exhaust system when starting the engine, too much vibration shortly after starting the engine, or too loud engine operation..
