Glow plug 87 mm mistubishi iseki shibuara ford

Traktor_com_pl offers: Glow plug 87 mm Mistubishi Iseki Shibuara FordMitsubishi

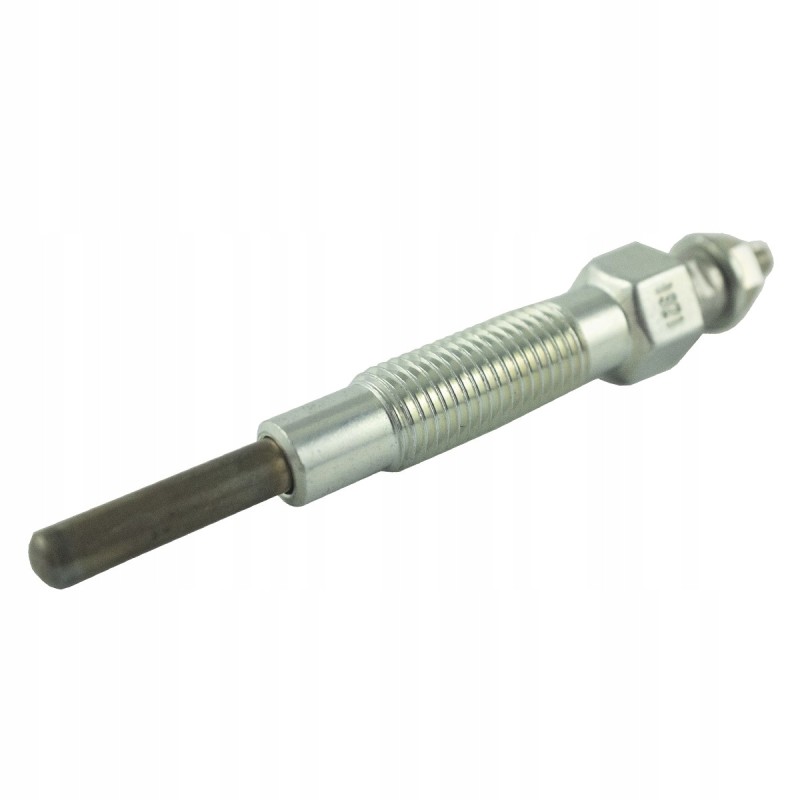

Glow plug with a total length of 87 mm and a filament length of 22 mm with an M10x1.5 thread for Japanese tractors, mini tractors from Markitsubishi, Yanmar, Iseki, Shibaura and others.

The glow plugs are mounted in the engine block in such a way that the heating tip is located in the intake manifold chamber. The rapid increase in the temperature of the spark plug tip is caused by the current that flows through the spark plugs when the ignition key is turned to the spark plug heating position. The rapid increase in the temperature of the spark plug tip heats the air, and the heated air sucked further into the engine facilitates ignition and starting the engine

Manufacture: OEM, NGK Japan

Engine model: Mitsubishi S3L2-11A

Total length (mm): 87

Filament length (mm): 22

Thread length(s) (mm): 22

Wrench size: 12

Thread: M10 x 1.25, M4

Tractor models: Mitsubishi MT1601, Mitsubishi MT1601DT, Mitsubishi MT1801, Mitsubishi MT1801DT, Mitsubishi MT2001, Mitsubishi MT2001DT, Mitsubishi MT200, Mitsubishi MT1401, Mitsubishi MT1401DT

Dimensions :

total length: 87 mm,

filament length: 22 mm,

thread: M10 x 1.25 mm / M4,

thread length: 22 mm,

tightening torque: 15-20 Nm,

key size: 12,

Engine models :

Mitsubishi S3L2-11A.

Tractor models :

Mitsubishi MT1401,

Mitsubishi MT1401D,

Mitsubishi MT1601,

Mitsubishi MT1601DT,

Mitsubishi MT1801,

Mitsubishi MT1801DT,

Mitsubishi MT2001,

Mitsubishi MT2001DT,

Mitsubishi MT200.

A malfunctioning glow plug is a common cause that prevents the engine from starting and grounding the machine. The first signs of malfunctioning spark plugs include increased smoke coming from the exhaust system when starting the engine, too much vibration shortly after starting the engine, or too loud engine operation.
