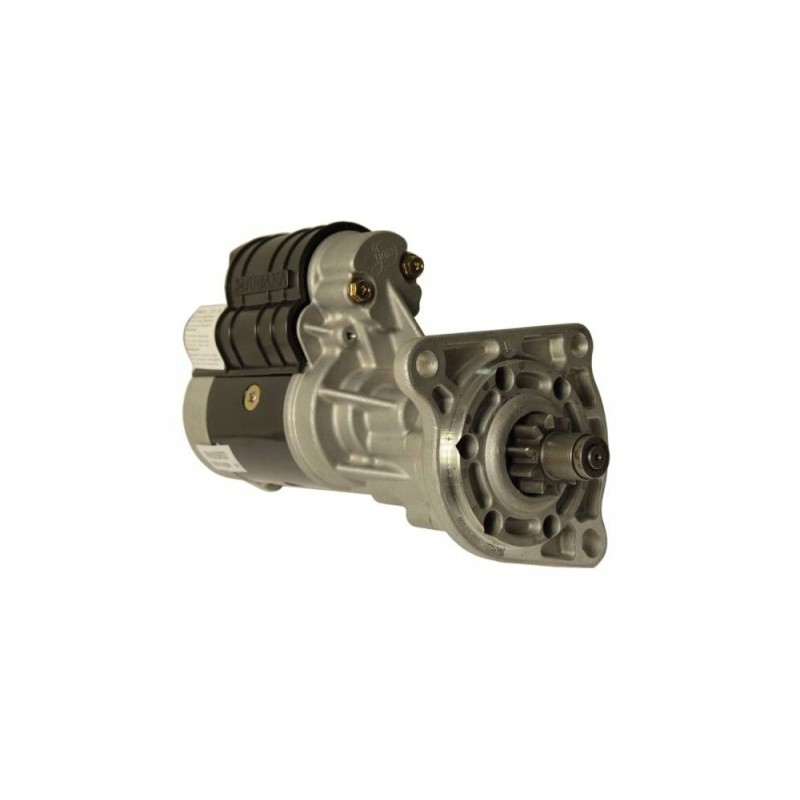

Starter with reducer mf 255 3512 ursus c 360 3p

STARTER WITH REDUCER MF3 2.8KW JUBANA 123708113 ATTENTION! THE NEW GENERATION OF THE STARTER IS WITHOUT COVER!

Reinforced starter with a 2nd generation reducer based on HITACHI components!!

The 2nd generation high-speed starter is characterized by:

- Increased speed up to 5127 rpm

- Less current consumption, only 161A

- Additional housing on the electromagnet

- Additional pin in the clutch assembly, preventing chamfers entering the ring flywheel.

Technical data:

Power: 2.8kW 55Nm at 5127 rpm

Current: 12V

Number of teeth: 10

Spacing of adjacent holes: 103mm

Spacing of holes diagonally: 142mm

Application:

Ursus 2812 3512 3514 C -360 3P

MF 35, 65, 124, 133, 135, 140, 145, 148, 152, 154, 155, 158, 165, 168, 174, 184, 194, 230, 233, 234 , 235, 240, 245, 250, 253, 254, 255, 260, 263, 264, 350, 353, 354, 355, 360, 363, 364, 550, 560,

Part no.: 3027466M1J, 3597426M3, 1894395M91, 3478364M2, 3930505R1, 3597426R2, 2873A012T, 1680065M3, 1680064M1

High quality starter was manufactured by the Lithuanian company JUBANA.

The starter has built-in reducer, which is extremely helpful when starting the engine at low temperatures. The starter uses bearings.

The starter is designed in a modern design.

The dynamoelectric structure of the starter is made with particular care: shockproof coupling unit, hermetic and waterproof electrical parts of the starter, high quality of workmanship, modern technology and production quality control ensure a durable and reliable device.

Simple and easy to service, it has the additional possibility of moving the head, which makes it more widely used.
