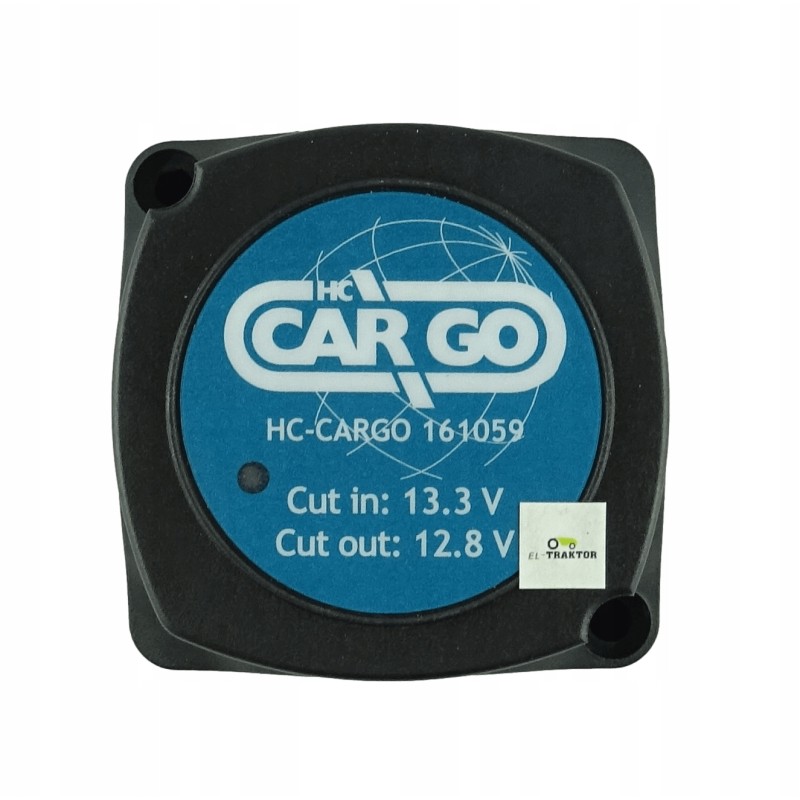

Battery separator isolator 12v 140a camper

Universal battery separatorThe device is designed to charge an additional battery while the car engine is running and prevent the main battery from discharging when standing still. The device monitors the main battery voltage - if it detects an increase above 13.3V, which only happens when the alternator is running, it will short its contacts, causing current to flow to the additional battery. At the same time, a light will come on informing the user about this. After stopping the engine, the system will open its contacts to prevent the main battery from discharging.

Technical data:

Voltage: 12V

Current/continuous current: 140A

Max current: 160A / 5 min

Dimensions: 67 x 67 x 50 mm

Number of batteries : 2

Type of supported batteries: lead, gel, AGM, traction

Where can such a separator be used?

in the power supply system of a caravan, campers,

when powering all devices in the car from an additional battery: audio equipment, camping refrigerators, winches in off-road vehicles, CB radios, etc.

to isolate batteries in other systems with two batteries

Application:

in agricultural vehicles and machines

in construction vehicles and machines

in boats

campers

and other devices with two batteries
