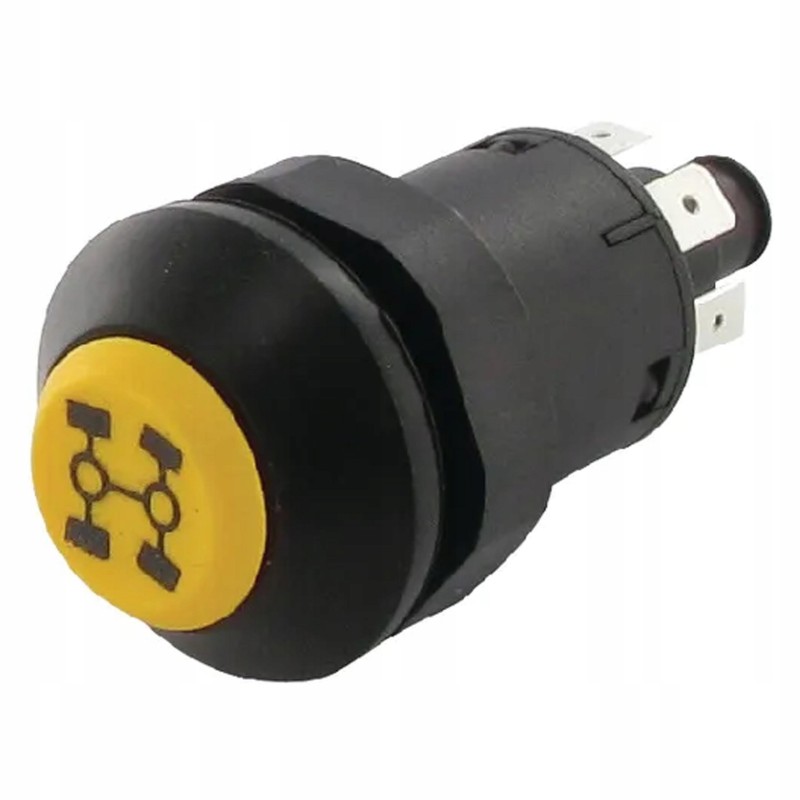

Wheel drive switch 4wd Renault 7700011524

Four-wheel drive push button switch Fendt Renault Deutz-Fahr Same LamborghiniFits:

Fendt:

Farmer 300C: 307, 308, 309

Farmer 300 LS(A): 303, 308, 309

Farmer 300 Turbomatik: 307, 308, 309

Renault:

90 series: 95-12, 95-14

100 series: 103-12, 103-14, 103-54, 106-14SP, 106-54, 110-14, 110-54, 113-12, 113-14, 120-14, 120-54, 133-14, 133-54, 145-14, 145-54, 155-54, 160-94, 175-74, 180-94

900 series: 954MI

Ceres: 65, 70 , 75, 85, 95, 310, 316, 320, 325, 326, 330, 335, 336, 340, 345, 346, 355

Deutz-Fahr:

Agrocomact: 70F3/F4, F60, F75, F80, F90, F100

Agrolux F: F50, F60, F70, F80

Agroplus: 60, 67, 70, 75, 80, 85, 87, 95, 95 NEW, 100

Agroplus S: S100

Agrotrac: 100, 110

Lamborghini:

Agile: 660S, 660V, 770S, 775V, 880S, 990S

F Plus: 55 F Plus, 70 F Plus, 75 F Plus, 775-F Plus, 90 F Plus, 100 F Plus, 660-F Plus, 880-F Plus, 990-F Plus

Fromula: 115, 135

Grand Prix: 674-70, 774-80, 874-90T, 75 Target, 95 Target

Lamp: 55W, 70W

Premium: 850, 950, 1050, 1060, 1100, 1300, 1600, 1800

R2.: R2.56, R2.66, R2.76, R2.86, R2.86 Target

R3.: R3.75, R3.85, R3.95

R4.: R4.85, R4.95, R4.105, R4.110

R5.: R5.100, R5.110, R5.115, R5.130

RF: RF 55, RF 70, RF 75, RF 90, RF 100

RS: RS 70, RS 75, RS 90

RS COM3: RS100

RV: RV70, RV75, RV90, RV100

Racing: 150, 165, 190

Sprint: 654-55, 664-60, 664-65, 674-70, 674-75, 684-85

Same:

Antares: 100, 110, 110 II, 130, 130 II

Dorado: 55, 55F, 56, 56 Classic, 60, 65, 66, 70, 70F, 70S, 70V, 75, 75F, 75S, 75V, 76, 76 Classic, 85, 86, 86 Classic, 90F, 90S, 90V, 100F

Explorer: 75, 85, 95

Explorer II: 60, 70, 80, 90

Frutteto II: 55 II, 60 II, 70 II, 75 II, 85 II, 90 II, 100 II

Golden: 60 Compatto, 60V, 65 Compatto, 75 Compatto, 75V, 85 Compatto

Laser: 100, 110

Roller : 55, 70

Silver: 80, 85, 90, 95, 100.4, 100.6, 105, 110, 115, 130, 160, 180

Titan: 145, 150, 160, 165, 190

Features:

Voltage (nominal): 12/24 V

Operating temperature -30 to +70 C

Possible load: minimum 10 mA, maximum 15A

Maximum current of a pair of contacts: 25A

Maximum switching current: 50A

Service life 500,000 operations

Plug-in connector 6.3x8.0 (E-CU, 5 µm)

Dust and splash resistant

Catalog number: G117.902.020.050, G117.902.021.030, G117902020050, G117902021030, 01177152, 0075945020, 00759450/20, 0.007.5945.0/20, 77 00011524, 7700020880, 00759450

Producer: Pneutron
