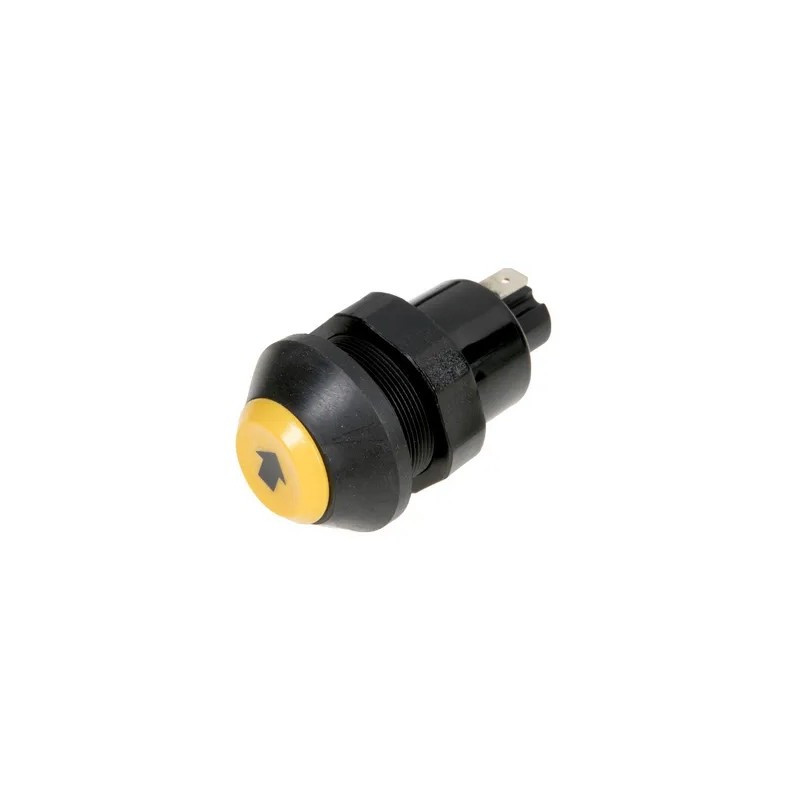

Push button switch for raising and lowering

Push-button switch, lifting and lowering, round, yellow

Part number: K. 11215080PN

EAN:

Unit: Art

Features:

Voltage (nominal): 12/24 V

Operating temperature -30 to +70 C

Possible load: minimum 10 mA, maximum 15A

Maximum current of a pair of contacts: 25A

Maximum switching current: 50A

Service life 500,000 operations

Plug-in connector 6.3x8.0 (E-CU, 5 µm)

Dust and splash resistant

Technical information: IP67 side switch

Function:

Lift, implement linkage

Lower linkage

Button color: Yellow

Color: yellow

Information: Without detent

The product fits the machines:

Hürlimann Series H Master H 6165 Master, H 6190 Master, Master High Performance

Series XT XT 908, XT 909, XT 910.4, XT 910.6

Lamborghini Series Premium Premium 1050, Premium 1060, Premium 850, Premium 950

Series Racing Racing 150, Racing 165, Racing 190, Racing High Performance

Same Series Silver Silver 100.4, Silver 100.6, Silver 80, Silver 90

Series Titan Supertitan, Titan 145, Titan 150, Titan 160, Titan 165, Titan 190
