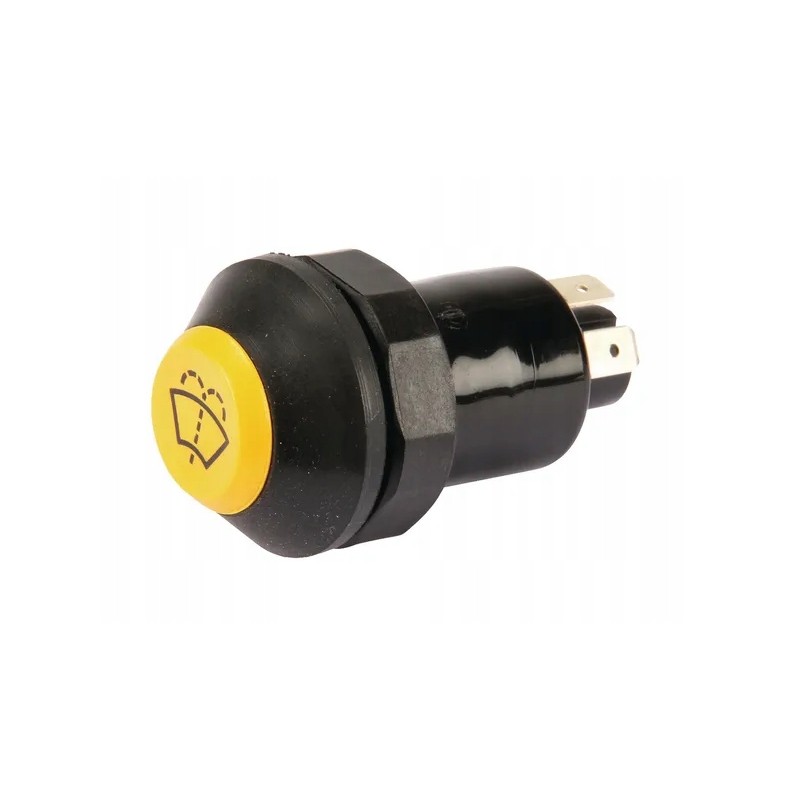

Wiper washer push button switch

Push button switch, windshield washer, round, yellow Part number: K. 11245100PN

EAN:

Unit: Art

Features:

Voltage (nominal): 12/24 V

Operating temperature -30 to +70 C

Possible load: minimum 10 mA, maximum 15A

Maximum current of a pair of contacts: 25A

Maximum switching current: 50A

Service life 500,000 operations

Plug-in connector 6.3x8.0 (E-CU, 5 µm)

Dust and splash resistant

Technical information: IP67 side switch

Function: Wiper/Washer

Button color:

Yellow

Black

Color: yellow

Information: Without detent

The product fits the machines:

DEUTZ-FAHR Series AgroXtra AgroXtra 3.57 Sn.- 7609, AgroXtra 3.57 Sn.- 7609, AgroXtra 4.07 Sn.- 7628, AgroXtra 4.07 Sn.- 7628, AgroXtra 4.17 Sn.- 7639, AgroXtra 4.17 Sn.- 76 39, AgroXtra 4.47 Sn .- 7647, AgroXtra 4.47 Sn.- 7647, AgroXtra 4.57 Sn.- 7641, AgroXtra 4.57 Sn.- 7641, AgroXtra 6.07 Sn.- 7645, AgroXtra 6.07 Sn.- 7645, AgroXtra 6.17 Sn.- 7646 , AgroXtra 6.17 Sn. - 7646, AgroXtra 3.57 Sn.- 7609, AgroXtra 4.07 Sn.- 7628, AgroXtra 4.17 Sn.- 7639, AgroXtra 4.47 Sn.- 7647, AgroXtra 4.57 Sn.- 7641, AgroXtra 6.07 Sn.- 7645, A groXtra 6.17 Sn.- 7646

Series Agroprima Agroprima 4.31 Sn.- 7630 / 7631, Agroprima 4.31 Sn.- 7630 / 7631, Agroprima 4.51 Sn.- 7634 / 7635, Agroprima 4.51 Sn.- 7634 / 7635, Agroprima 4.56 Sn.- 761 4 / 7615, Agroprima 4.56 Sn .- 7614 / 7615, Agroprima 6.06 Sn.- 7636 / 7637, Agroprima 6.06 Sn.- 7636 / 7637, Agroprima 6.16 Sn.- 7638, Agroprima 6.16 Sn.- 7638, Agroprima 4.31 Sn.- 7630 / 7631, Agroprima 4.51 Sn .- 7634 / 7635, Agroprima 4.56 Sn.- 7614 / 7615, Agroprima 6.06 Sn.- 7636 / 7637, Agroprima 6.16 Sn.- 7638

Series DX 2/4/5/6/7/8 DX 4.10, DX 4.30, DX 4.50, DX 4.70, DX 6.05, DX 6.10, DX 6.30, DX 6.50, DX 7.10

Series DX 3.XX DX 3.10, DX 3.30, DX 3.50, DX 3.60, DX 3.65, DX 3.70, DX 3.80, DX 3.90

Series DX 3V/F/S DX 3. 50V/F, DX 3.50S

Landini Series 500 16000, 16000, 16000, 16500, 16500, 16500, 19500, 19500, 19500

Series Large Imported 1 16550, 16550, 16550, 17500, 17500, 17500, 19000, 19000, 19000

Massey Ferguson Series 2620 - 2720 2620, 2720 2620, 2720 2620, 2720 2680, 2720 2680, 2720 2680

Series 2625 - 2725 2625, 2725 2625, 2725 2625, 2725 2645, 2725 2645, 2725 2645, 2725 2725, 2725 2725, 2725 2725

Series 3000 3050, 3050, 3050, 3060, 3060, 3060, 3065, 3065, 3065, 3070, 3070, 3070, 3075, 3075, 3075, 3080, 3080, 3080, 3085, 3 085, 3085, 3090, 3090, 3090, 3095, 3095, 3095

Series 3100 3115, 3115, 3115, 3120, 3120, 3120, 3125, 3125, 3125

Series 3600 3610, 3610, 3630, 3630, 3645, 3645, 3650, 3655, 3670, 3680, 3690
