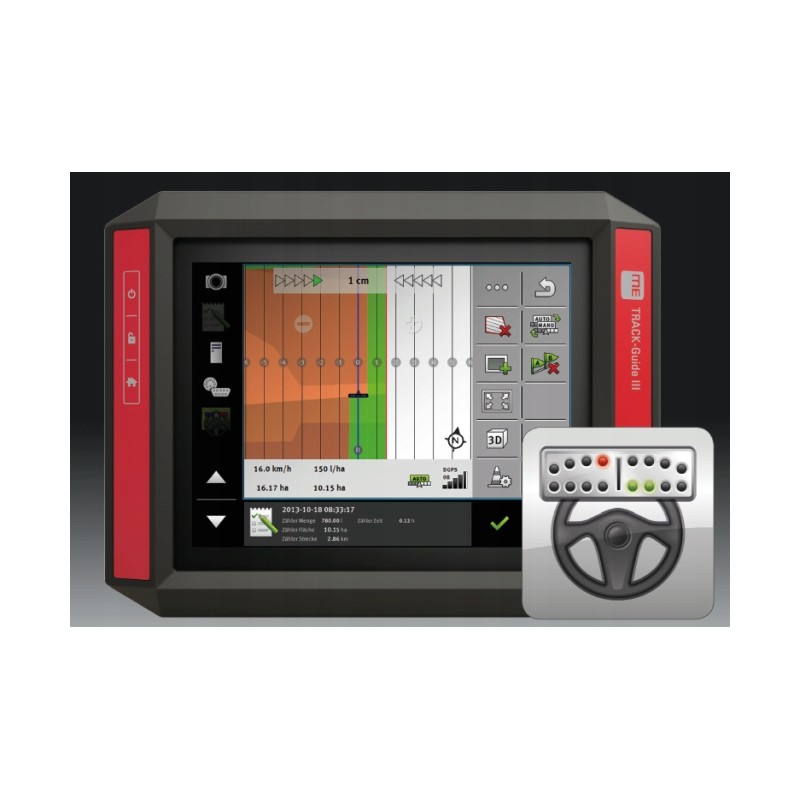

Muller Elektronik Track Guide III Ag 200 navigation

agricultural field navigation TRACK – Guide III with AG-200 antenna TRACK-Guide III is the latest generation field navigation system. Equipped with an eight-inch capacitive touch screen, it guarantees not only a clear image but also easy operation. The on-screen Lightbar direction mode can be replaced with the SECTION-View working section mode with one touch of a finger.

TRACK-Guide III can be expanded with a number of additional utility applications and is the main component of automatic vehicle driving systems. Activating the ISOBUS-UT application makes it a full-fledged ISOBUS terminal with all the functions of this system.

DescriptionTechnology

Compact, solid design of the device

Damage-resistant panel with laminated buttons

8″ cm TFT color touch display with a resolution of 800 x 600 pixels

Adjustable display brightness

Operating temperature: -20 to +70 C

Easy installation and transfer of the device to another machine

Internal memory 1 GB

Parallel, contour, circular guidance and many others

Warning against obstacles< p>

Measurement of area, speed, distance

High-quality 12-channel DGPS receiver with integrated antenna and magnetic hook for quick installation, use of the free EGNOS D-GPS satellite system

Calibration of the EGNOS correction signal via a reference point

Advantages

Precise machine guidance, elimination of overlaps and bypasses - savings in production resources and fuel

Warning about natural obstacles eliminates the risk of damage equipment

Possibility of working in conditions of limited visibility and at night

Limiting damage to plants in row crops, limiting the turnaround time

Very simple, intuitive operation

Possibility to precisely determine any points in the field (obstacles)

Easy installation, transfer of the system to another machine

resistant 8" Touch display

intuitive operation

expansion with automatic steering systems

ISOBUS ready

The AG-200 receiver is a high-quality, intelligent GNSS receiver. It is a receiver and antenna in one compact housing.

The receiver works with free WAAS or EGNOS correction signals and Trimble ViewPoint RTX™ corrections.

AG-200, in addition to GPS and GLONASS, also receives satellite signals Galileo.

It has been developed for agricultural applications where high availability is required, e.g. section control, setpoint control,

assisted steering and field navigation. The universal magnetic holder allows for quick and easy installation on any machine. Various interfaces enable future communication with the receiver via the CAN bus or serial.

The GNSS receiver has an LED that indicates the current status of the receiver.

We also offer other products from the German company Muller Elektronik.We offer also assembly at the customer's place.
