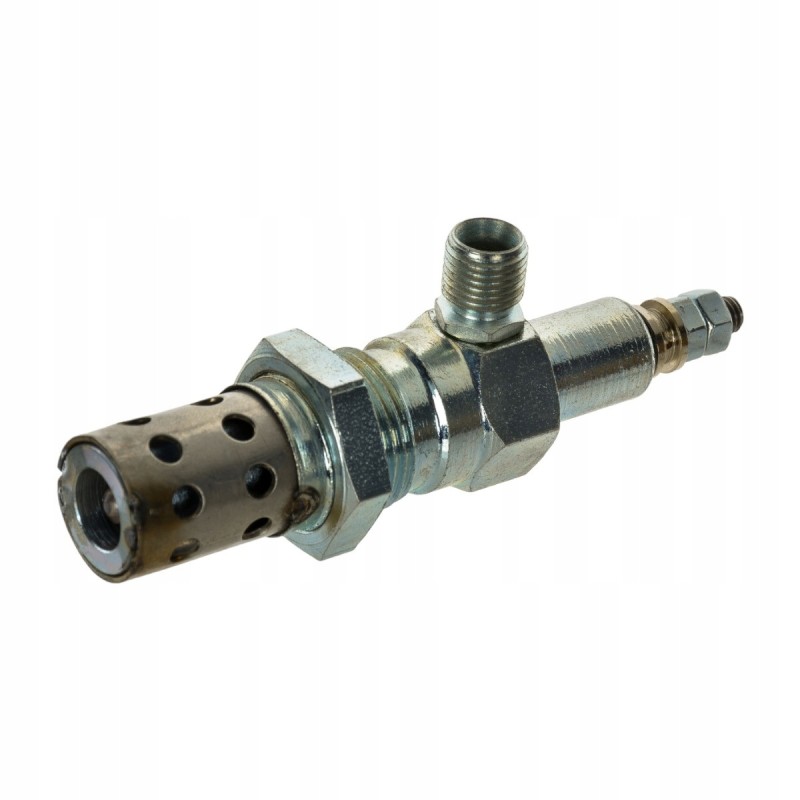

Flame candle m20x1 5 9 5v deutz fendt

Flame plug M20x1.5 9.5V Deutz Fendt F284200181010 01180433 F205200181010 11720544 MIZAR number: 65024

Flame plug M20x1.5 9.5V Deutz Fendt F284200181010Technical information:Gwin t: M20x1.5

Fuel connection thread: M10x1

Voltage: 9.5V

Total length: 95mm

Length from the end of the thread to the end of the burner: 26 mm

Pallet diameter: 18 mm

Key: 20/24

Comparison numbers: 01161134, 01180433, 11 720 544, 116 1134, 1161134, 11720544, 18560, F1 00.001.161 .134, F100001161134, F205200181010, G205.200.181.010, G205200181010, X830.030.126.000, X830030126000, F284200181010

Application: Engines

Deutz

BF 4M 1012 EC, BF 6L 912, BF 6L 913, BF 6M 1013 EC, BF 6m 1013 ECP, BF 6M 1015, BF 6M 1015C, BF 6M 2013, BF 6M 2013C, F 2L 912, F 3L 912, F 3L 912 H, F 3L 913, F 3L 913 H, F 4L 913, F 4L 913 H , F 4L 912, F 4L 912 H, F 5L 912, F 6L 912, F 6L 913, F 8L 413,

IH, D132,

Case

BD, DGD4

Deutz

06, 10006, 10006F, 10006U, 13006, 16006, 2506, 3006, 3006F, 4006, 4006F/S, 4006U, 4506, 4506F, 4506US, 5006, 5006F, 5006U, 5206, 5206F, 5206U, 5506, 5506F, 5506U, 6006, 6006F, 6006U, 6206, 6206F, 6206U, 6806, 6806F, 6806U, 7006, 7006F, 7006U, 7206, 7206A, 7206F, 7206U, 7506, 7506F, 7506U, 8006, 8006F, 8006U, 9006, 9 006A, 9006F, 9006U, 07, 2807, 3607, 3607F, 4007, 4007F, 4007U, 4507, 4507A, 4507F, 4807, 4807A, 4807F, 5207, 5207A, 5207F, 6007, 6007A, 6007F, 6207, 6207A, 6207F, 6 507, 6507A, 6507F, 6807, 6807A, 6907, 7007, 7007A, 7207, 7207A, 7807, 7807A, Agrocompact 3, 3.30V/F, 3.50S, 3.50V/F, 3.70V/F, 3.90F, 3.90S,

Agrolux, Agrolux 60, Agrolux 70, Agrolux 80, Agroplus , Agroplus 60, Agroplus 70, Agroplus 80,

Agroprima, Agroprima 4.31, Agroprima 4.36, Agroprima 6.06, Agroprima 6.16,

Agrostar, Agrostar 6.11, Agrostar Freisicht, Agrostar 6.08 Freisicht, Agrostar 6.28 Freisicht,

Agroxtra , Agroxtra 3.57, Agroxtra 4.07 Agroxtra 4.17 , DX140, DX160, DX160A, DX250 , DX250A, DX250V, DX3500, DX36, DX3700, DX3900, DX50, DX55, DX80, DX80A,

DX3 SC, DX3.10SC, DX3.30SC, DX3.50SC, DX3.60SC, DX3.65SC, DX3.70SC, DX3 .80SC, DX3.90SC, DX3 V/F/S, DX3.10V, DX3.30V/F, DX3.50S, DX3.50V/F, DX3.70V/F, DX3.90F, DX3.90S, DX3 VC , DX3.10VC, DX3.30VC, DX3.50VC, DX3.60VC, DX3.65VC, DX3.70VC, DX3.75VC, DX3.90VC,

DX4, DX4.10, DX4.11, DX4.30, DX4. 31,

DX6, DX6.05, DX6.06, DX6.10, DX6.30,

Dxab, Dxab 110, Dxab 120, Dxab 80, Dxab 85, Dxab 86, Dxab 90, Dxab 92,

Dxbis, Dxbis 110 , Dxbis 120, Dxbis 85, Dxbis 90,

Hopfen, Hopfen DX4.17,

Intrac, Intrac 2002, Intrac 2003, Intrac 2004, Intrac 2005, Intrac 2006, Intrac 6.30,

Fendt

Agrobil, Agrobil S821,

Farmer 200 , 200S, 200SA, 200V, 200VA, 201S, 201SA, 203P, 203P/II, 203PA, 203PA/II, 203V, 203V/II, 203VA, 203VA/II, 204P, 204PA, 204V, 204VA, 205 P, 205PA, 240S , 250K, 250KA, 250LE, 250S, 250SA, 250V, 250VA, 260P, 260PA, 260S, 260SA, 260V, 260VA, 270P, 270PA, 270V, 270VA, 275SA, 275V, 275VA, 280P, 280PA,

Farmer 300 C, 307, 308, 309,

Favorit 700, 711, 712, 714, 716,

GT Kommunal, F255GT Kommunal, F275GT Kommunal, F275GTAII Kommunal, F275GTII Kommunal, FL345, FL360, FL365, FL380, FLA380,

GT porte-outils, F255GT, F275GT, F275GTII, F345GT, F345GTM, F360GTF, F360GTH, F370GT, F370GTA, F380GHA, F380GT, F380GTA, F380GTH, F390GTA, F395GHA, F395GTA,

Grain harvester new:

5000, 5180, 5220, 5250, 6000, 6300, 6330 , 8000, 8300, 8350,

Cutterbar: TS, TS80

MIZAR number: 65024
