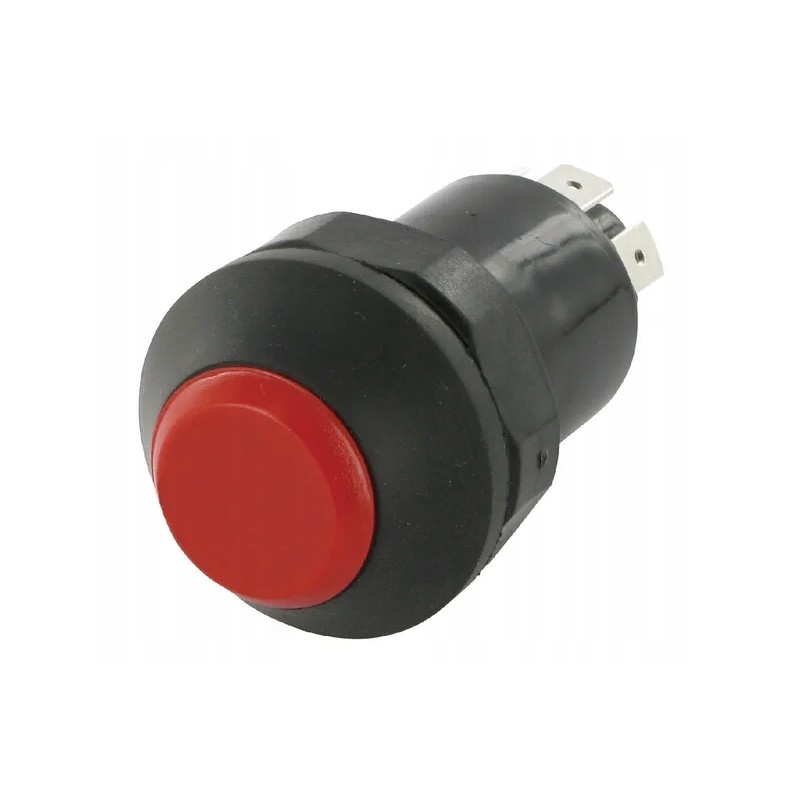

Round red PTO shaft push button switch

Push-button switch, PTO shaft, round, red

Part number: K. 11145340PN

EAN:

Unit: Art

Features:

Voltage (nominal): 12/24 V

Operating temperature -30 to +70 C

Possible load: minimum 10 mA, maximum 15A

Maximum current of a pair of contacts: 25A

Maximum switching current: 50A

Service life 500,000 operations

Plug-in connector 6.3x8.0 (E-CU, 5 µm)

Dust and splash resistant

Technical information: IP67 side switch

Function: PTO shaft Button color: Red

Color: Red

Information: With detent

The product fits machines:

Steyr Series 9000 9078, 9078, 9086, 9086, 9094, 9094, 9078, 9086, 9094

Series 9000 M / MT 9080 M, 9080 M, 9080 MT, 9080 MT, 9085 MT, 9085 MT, 9090 M, 9090 M, 9090 MT, 9090 MT, 9095 MT, 9095 MT, 9100 M, 9100 M, 9100 MT, 9100 MT, 9105 MT, 9105 MT, 9080 M, 9080 MT, 9085 MT, 9090 M, 9090 MT, 9095 MT, 9100 M, 9100 MT, 9105 MT

Series 9105 - 9145 9105, 9145 9105, 9145 9115, 9145 9115, 9145 9125, 9145 9125, 9145 9145, 9145 9145, 9145 9105, 9145 9115, 9145 9125, 9145 9145

Series M 9000 M 9078, M 9083, M 9086, M 9094

Related articles you can find in our other offers:

Spare parts

Switch symbol, PTO shaft, round, red 11356330PN

Plastic nut M30x1 B580101PN

Rubber seal EL1901003

Accessories

Rubber seal EL1901003

Plug connector, 7 x 6.3 mm EL52315

Bulb 12V 1.2W W2x4.6d Pneutron EL70775
