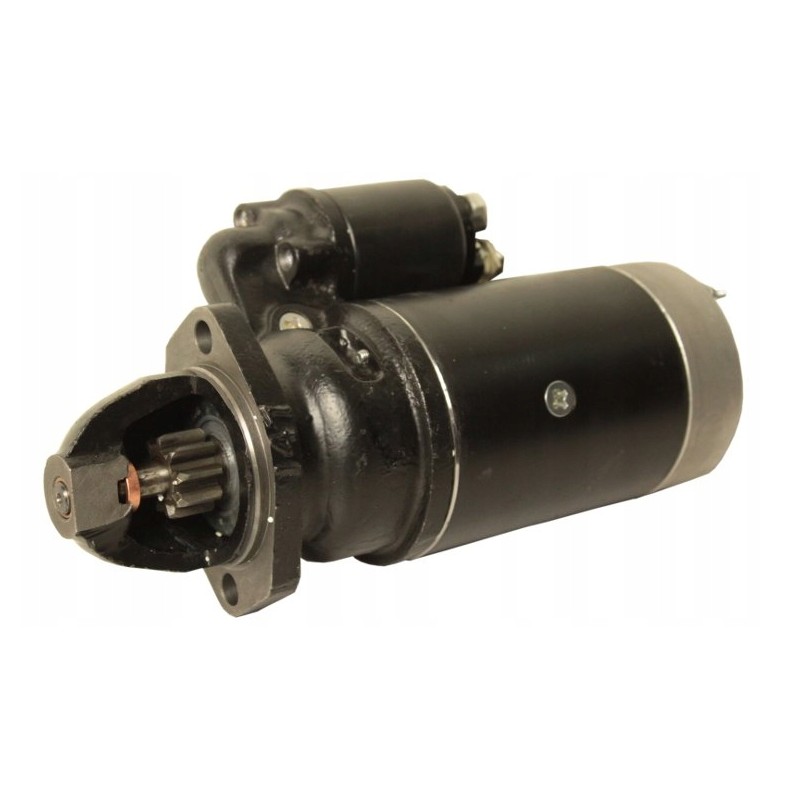

Deutz starter 12v 3 0 kw 9 with two mounting holes

DEUTZ STARTER 12V 3.0 kW 9Z TWO MOUNTING HOLES equivalent 9144820 11130898 MIZAR number: 22566

Classic starter

Voltage: 12V

Number of teeth: 9

Hole spacing: 105mm

Nominal power - 3kW,

Max power - 3.56kW

Max torque [Nm] - 52Nm,< p>

Max current - 1284A,

Comparison number

ES71, 9144820, ISO254, ISO254, 0001354088, 0001359038, 0001359083, 0001359113, 0001362023, 0001362036, 0001367005, 1530289C1 , 11130898, 11130548, AZJ3320, IS0254, IS0548, AZJ3166, 296192300, 063216816010, 63216816, 63217156, 605720100048, 120568, 1205 68A, 120560A, 120568B, 296192900, 210090010, 30800090001, 31100090017, 41100090005, 41100090007, 61100090002, 0001230012, 0 001359038, 0001359075 , 0001359083, 0001359113, 0001367005, 0001367011, MT68R, RA 296192300, 296193500, 296192900.

Application:

Same

Antares 11 0, Antares 130, Dorado 70 , Dorado 75, Dorado 85, Explorer 70, Explorer 80, Explorer 90, Galaxy 170, Golden 75, Golden 85, Krypton 100, Krypton 80, Krypton 90, Laser 110, Laser 130, Laser 150, Rubin 120, Rubin 135, Rubin 150, Rubin 160, Rubin 180, Rubin 200, Silver 100, Silver 110, Silver 115, Silver 160, Silver 180, Silver 80, Silver 90, Titan 145, Titan 190, Vigneron 75

Lamborghini

1056, 1106, 1306, 1506, 1556, 1706, 674-70, 774-80, 874-90, 956

774-80 DT, 784L, 854DT2RM, 874T, 955DT2RM, R874-90T

Steyr 8100, 8120

MIZAR number: 22566
