Hydraulic power supply starter 12v 200a

15011773885541
SM-G
£60.60
Quantity
5 Items

Description

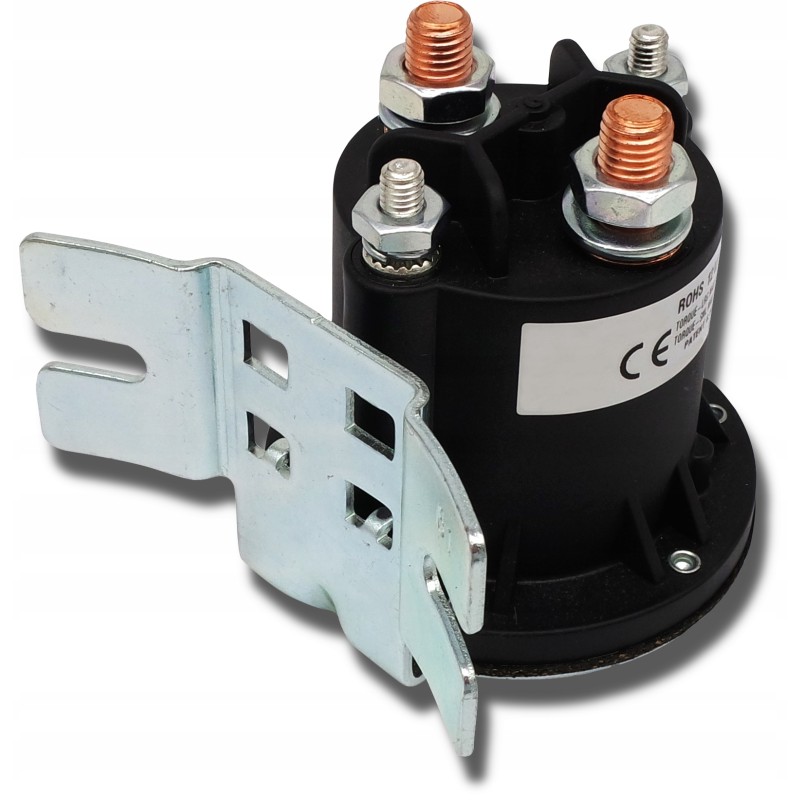

COIL - electromagnet of the hydraulic tipping pump 12V 200A KOD SKRAW MET: [0291] Manufacturer: SM-G (SKRAW MET GROUP) Application: The coil is used in delivery vehicles and is used to switch on the electric pump. The coil is perfect for electrically powered machines and devices .

Can be used in agriculture, horticulture, forestry and construction.

Technical specifications: Voltage: 12V

Current: 200A

Resistance: 5.4Ω

Connection material: Copper

Permissible temperatures: From -40°C to +82°C

Connection method: Vertical or horizontal

Maximum operating time: 6 minutes

Contactor type: SPST NO

Coil size (mm): Installation instructions: Select the coil mounting location.

Using the coil as a pattern, mark where to drill the mounting holes.

Using a 1/4' drill bit, drill holes in the locations marked in the previous step.

Install the coil using screws and 1/4' washers.

Connect the wires according to the connection diagram.

Connection diagram: 1- Ground

2- Ground

3- Voltage

B1- Power supply

B2- Switch

B3- Current receiver

B4- Fuse

Product Details
SM-G
15011773885541
PP-SP-SR-12V-200AXS
5 Items
New

Data sheet

Manufacturer
SM-G
Part Number
PP-SP-SR-12V-200AXS
