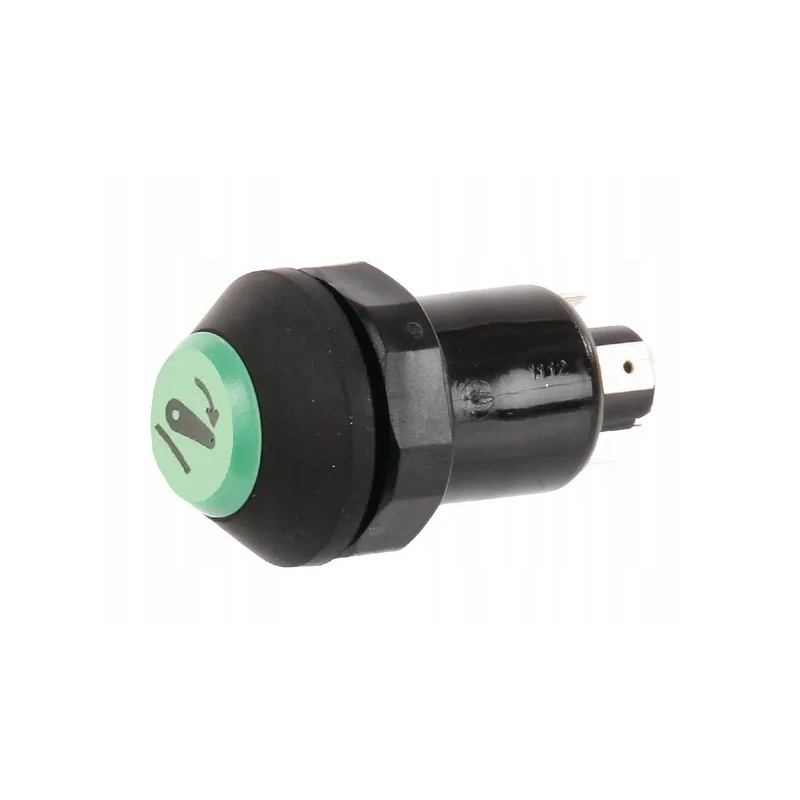

Lower suspension push button switch

Push-button switch, lower linkage, round, green

Part number: K. 11145330PN

EAN:

Unit: Art

Features:

Voltage (nominal): 12/24 V

Operating temperature -30 to +70 C

Possible load: minimum 10 mA, maximum 15A

Maximum current of a pair of contacts: 25A

Maximum switching current: 50A

Service life 500,000 operations

Plug-in connector 6.3x8.0 (E-CU, 5 µm)

Dust and splash resistant

Technical information: IP67 side switch

Feature: Lower suspension system

Button color: Green

Color: green

Information: With detent

The product fits machines:

Steyr Series 9000 9078, 9078, 9086, 9086, 9094, 9094, 9078, 9086, 9094

Series 9000 M / MT 9080 M, 9080 M, 9080 MT, 9080 MT, 9085 MT, 9085 MT, 9090 M, 9090 M, 9090 MT, 9090 MT, 9095 MT, 9095 MT, 9100 M, 9100 M, 9100 MT, 9100 MT, 9105 MT, 9105 MT, 9080 M, 9080 MT, 9085 MT, 9090 M, 9090 MT, 9095 MT, 9100 M, 9100 MT, 9105 MT

Series 9105 - 9145 9105, 9145 9105, 9145 9115, 9145 9115, 9145 9125, 9145 9125, 9145 9145, 9145 9145, 9145 9105, 9145 9115, 9145 9125, 9145 9145

Series M 9000 M 9078, M 9083, M 9086, M 9094
